WAGO 260-262
Wago
$15.16

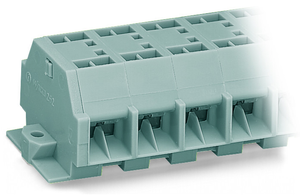

4-conductor terminal strip; without push-buttons; with snap-in mounting feet; 12-pole; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ã; 1.5 mm²; CAGE CLAMP; 1,50 mm²; gray.
The WAGO 260 series feed-through terminal strip is a gray, 1-deck/level component featuring 12 feed-through poles and 48 wire connections (24 clamps on each side), suitable for wire sizes ranging from 0.08mm² to 1.5mm² or #28AWG to #16AWG. It supports a rated current of 18A and utilizes CAGE CLAMP spring connections for secure wiring. The terminal strip can be mounted on a DIN rail or surface using accessory snap-in foot mounting and is equivalent to model 260262.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 25.1 mm / 0.988 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 0.548 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 17.1 mm / 0.673 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- module width:
- 8 mm / 0.315 inch
- mounting type:
- Snap-in foot
- nominal voltage iii 3:
- 400 V
- packaging type:
- Box
- pole no:
- 12
- rated current:
- 18 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 29.220 g
- width:
- 99 mm / 3.898 inch
- wiring direction:
- Side-entry wiring
