WAGO 261-313/341-000 Pack of 50
Wago
$58.00

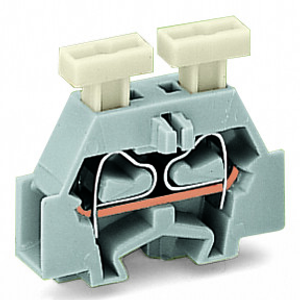

2-conductor terminal block; on both sides with push-button; with snap-in mounting foot; 1-pole; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ã; 2.5 mm²; CAGE CLAMP; 2,50 mm²; light gray.
The WAGO 261 series feed-through terminal block is a light gray, single-deck component designed for efficient electrical connections. It features buttons on both sides, snap-in mounting foot, and side marking slots. This terminal block supports one feed-through pole with two wires (one clamp each) and accommodates wire sizes from 0.08mm² to 2.5mm² (#28AWG to #14AWG). It is rated for a current of 24A and utilizes CAGE CLAMP spring connections for secure and reliable wiring. The terminal block can be mounted on a DIN rail or surface using an accessory snap-in foot, with a width of 6mm, and is equivalent to model 261313341000.
- actuation type:
- Operating tool || Push-button, both side
- color:
- Light gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 28.1 mm / 1.106 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.052 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 23.3 mm / 0.917 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- Snap-in foot
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- pole no:
- 1
- rated current:
- 24 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 2.630 g
- width:
- 6 mm / 0.236 inch
- wiring direction:
- Side-entry wiring
