WAGO 261-321/331-000 Pack of 50
Wago
$48.55

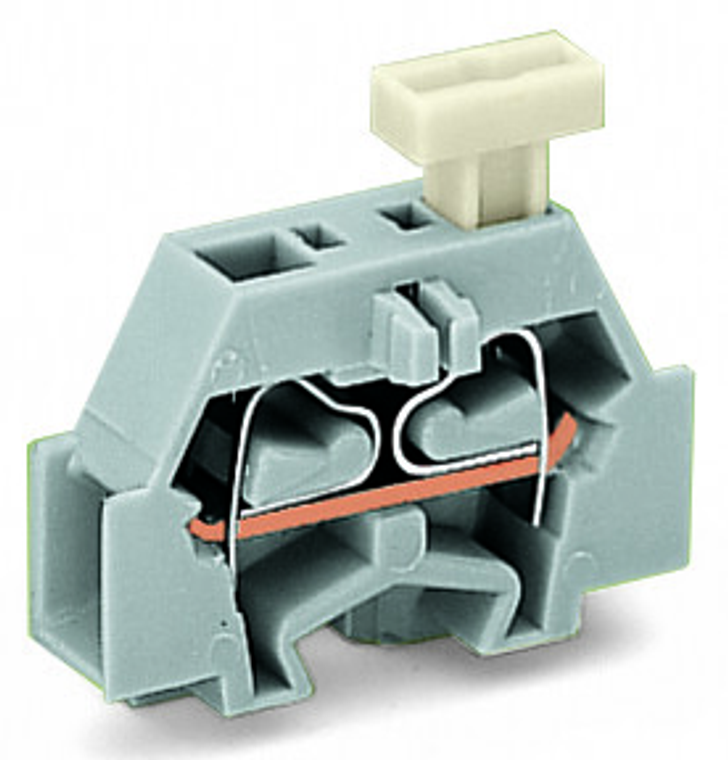

Space-saving, 2-conductor end terminal block; on one side with push-button; without protruding snap-in mounting foot; 1-pole; for terminal strips with snap-in mounting feet; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray.
The WAGO 261 series is a space-saving, gray feed-through terminal block designed for efficient wiring with one deck/level and a button on one side, featuring side/lateral marking slots. It accommodates one feed-through pole (1P) and two wires (1 clamp + 1 clamp) for wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #14AWG, with a rated current of 24A. The terminal block utilizes CAGE CLAMP spring connections and can be mounted on a DIN rail or surface using an accessory snap-in foot mounting, with a width of 6mm, equivalent to model 261321331000.
- actuation type:
- Operating tool || Push-button, one side
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 28.1 mm / 1.106 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.038 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 23.3 mm / 0.917 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- Snap-in foot
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- pole no:
- 1
- rated current:
- 24 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 2.257 g
- width:
- 6 mm / 0.236 inch
- wiring direction:
- Side-entry wiring
