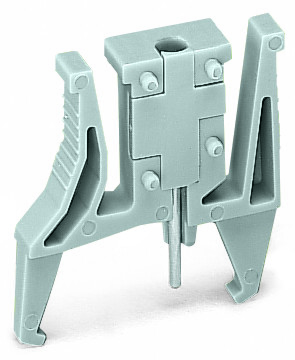

Test plug module; with locking latches; modular; for 2-conductor terminal blocks; for 261 Series.
The WAGO 261 series modular test plug module is a 1-pole (1P) component designed for testing purposes with a rated current of 0.5A. It is gray in color, has a width of 6mm, and is compatible with 2-conductor terminal blocks. This module is equivalent to the 261404 model.
- color:
- Gray
- country of origin sales organisation germany:
- DE
- fire load:
- 0.000 MJ
- module width:
- 6 mm / 0.236 inch
- nominal voltage iii 3:
- 400 V
- packaging type:
- Box
- ratings note:
- Maximum test voltage (touch contact): 48 V (test pins are not touch-proof)
- ratings note 2:
- Maximum test current (touch contact): 0.5 AMaximum test current: 6 A (if the test pins are securely connected in the clamping units)
- weight:
- 2.300 g
- width:
- 6 mm / 0.236 inch
