Wago

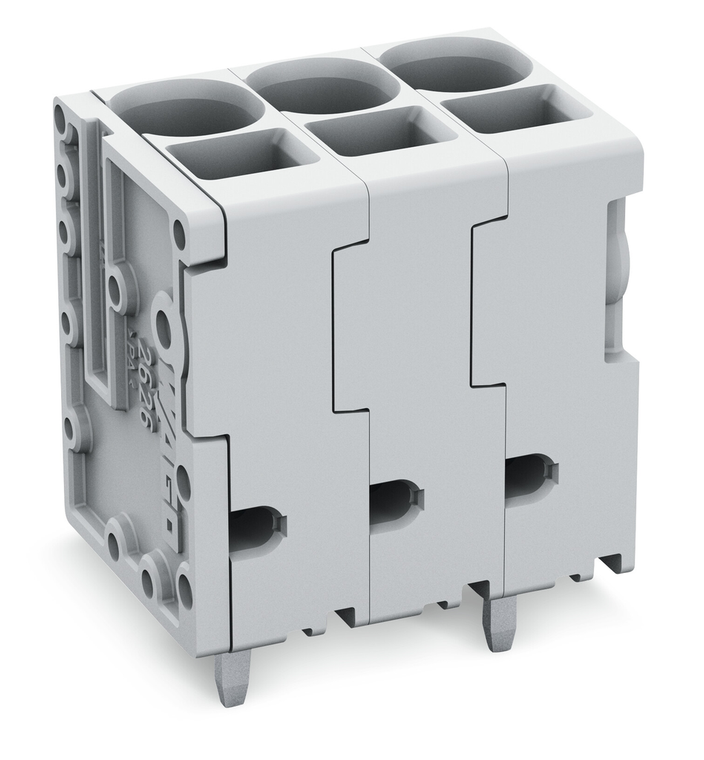

WAGO 2626-3108/020-000

SKU:

2626-3108/020-000

UPC:

MPN:

2626-3108/020-000

Condition:

New

actuation type:

Operating tool

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Gray

conductor connection direction to pcb:

90

connection technology:

Push-in CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

DE

depth:

18.5 mm / 0.728 inch

drilled hole diameter with tolerance:

2 (+0.1) mm

fine stranded conductor:

0.2 10 mm / 24 8 AWG

fine stranded conductor with insulated ferrule:

0.25 6 mm

fine stranded conductor with twin ferrule:

0.25 2.5 mm

fine stranded conductor with uninsulated ferrule:

0.25 6 mm

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

28.2 mm / 1.11 inch

height from the surface:

24.2 mm / 0.953 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

mounting type:

Feed-through mounting

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

1000 V

number of solder pins per potential:

1

packaging type:

Box

pcb contact:

THT

pin spacing:

7.5 mm / 0.295 inch

pole no:

8

rated current:

48 A

rated current csa use group b:

38 A

rated current csa use group c:

31 A

rated current ul use group b:

38 A

rated current ul use group c:

38 A

rated surge voltage ii 2:

8 kV

rated surge voltage iii 2:

8 kV

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage iii 2:

1000 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (staggered)

solder pin dimensions:

1.5 x 1 mm

solder pin length:

4 mm

solid conductor:

0.2 10 mm / 24 8 AWG

strip length:

13 15 mm / 0.51 0.59 inch

weight:

30.352 g

width:

61.8 mm / 2.433 inch
