Wago

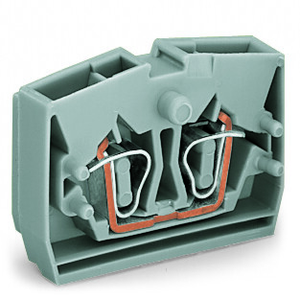

WAGO 264-336

SKU:

264-336

UPC:

MPN:

264-336

Condition:

New

actuation type:

Operating tool

color:

Orange

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

CH

depth:

32 mm / 1.26 inch

design:

Horizontal type

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fire load:

0.112 MJ

flammability class per ul94:

V0

height from the surface:

22.1 mm / 0.87 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center marking

mounting type:

Mounting flange

nominal voltage iii 3:

800 V

note conductor cross section:

12 AWG: THHN, THWN

packaging type:

Box

rated current:

24 A

rated surge voltage iii 3:

8 kV

solid conductor:

0.08 2.5 mm / 28 12 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

6.339 g

width:

10 mm / 0.394 inch

wiring direction:

Front-entry wiring
