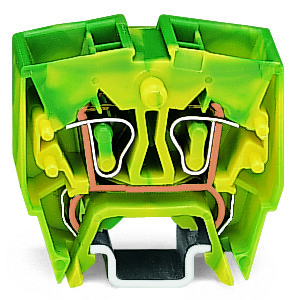

WAGO 264-727 4-conductor Mini rail-mount terminal block; 2.5 mm²; center marking; for DIN-15 rail; CAGE CLAMP; 2,50 mm²; green-yellow
Wago
$3.70
(No reviews yet)
Write a Review
Write a Review
Wago
WAGO 264-727 4-conductor Mini rail-mount terminal block; 2.5 mm²; center marking; for DIN-15 rail; CAGE CLAMP; 2,50 mm²; green-yellow
4-conductor Mini rail-mount terminal block; 2.5 mm²; center marking; for DIN-15 rail; CAGE CLAMP; 2,50 mm²; green-yellow.
The WAGO 264 series ground/earthing mini terminal block is a green-yellow, single-deck terminal block designed for grounding/protective-earth applications. It features a center marking slot and can accommodate four wires using two clamps on each side, suitable for wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #12AWG. The terminal block utilizes CAGE CLAMP spring connections for secure and reliable wire termination and is designed for mounting on a DIN-15 rail with a 10mm width. This product is equivalent to the model 264727.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 24.5 mm / 0.965 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.108 MJ
- flammability class per ul94:
- V0
- height:
- 32 mm / 1.26 inch
- marking level:
- Center marking
- mounting type:
- DIN-15 rail
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 7.500 g
- width:
- 10 mm / 0.394 inch
- wiring direction:
- Front-entry wiring
