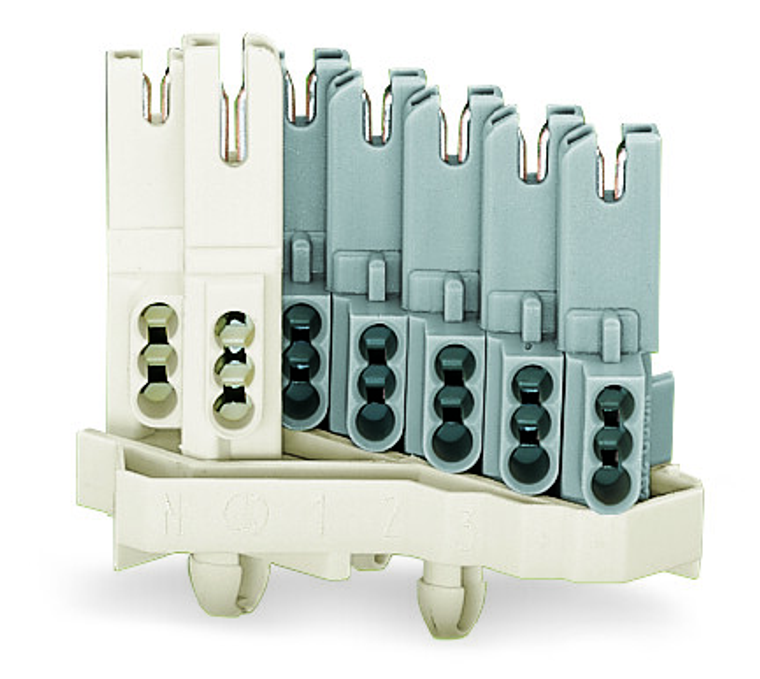

Female connector; without ground contact; with snap-in mounting feet; 6-pole; 1,00 mm²; white.
The WAGO component equivalent to 267166 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and ease of use, making it a preferred choice for professionals in the industry. It is compatible with a range of systems and can be integrated seamlessly to enhance performance and reliability in electrical installations.
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- White
- connection technology:
- PUSH WIRE
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 42 mm / 1.654 inch
- fire load:
- 0.140 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 34 mm / 1.339 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- material group:
- I
- packaging type:
- Bag
- pole no:
- 6
- rated current:
- 0.25
- rated surge voltage iii 2:
- 4 kV
- rated voltage iii 2:
- 500 V
- ratings per:
- IEC/EN 60664-1
- strip length:
- 8 mm / 0.31 inch
- temperature stability:
- 105 C
- weight:
- 11.434 g
- width:
- 26 mm / 1.024 inch
