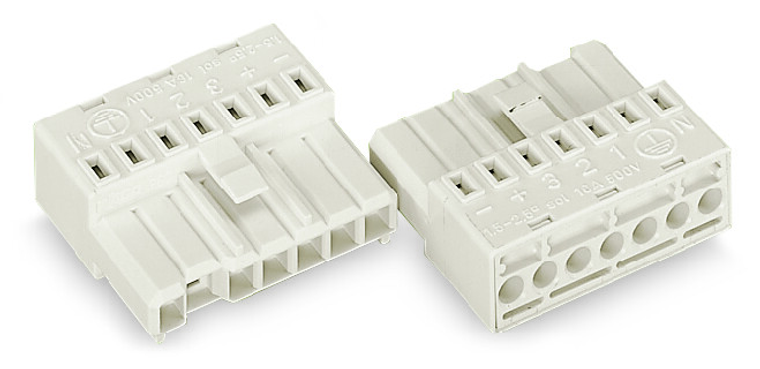

Female connector; without ground contact; 7-pole; 2,50 mm²; white.
The WAGO component equivalent to 267501 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is commonly used in industrial, commercial, and residential electrical installations, offering ease of use and versatility. It is known for its high-quality construction, durability, and compliance with relevant electrical standards, making it a preferred choice for professionals in the electrical industry.
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- White
- connection technology:
- PUSH WIRE
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 39 mm / 1.535 inch
- fire load:
- 0.181 MJ
- flammability class per ul94:
- V0
- height:
- 18 mm / 0.709 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- material group:
- I
- packaging type:
- Box
- pole no:
- 7
- rated current:
- 16 A
- rated surge voltage iii 2:
- 4 kV
- rated voltage iii 2:
- 500 V
- ratings per:
- IEC/EN 61984
- solid conductor:
- 1.5 2.5 mm
- strip length:
- 11 12 mm / 0.43 0.47 inch
- temperature stability:
- 105 C
- weight:
- 13.928 g
- width:
- 34 mm / 1.339 inch
