Wago 270-572

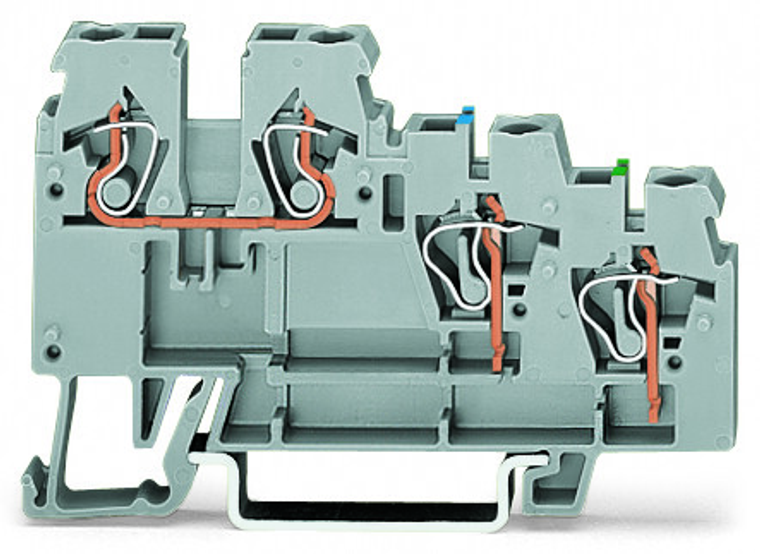

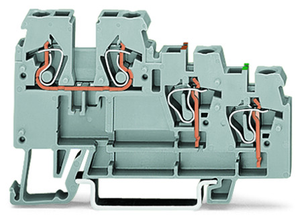

WAGO 270-572 3-conductor actuator supply terminal block; with colored conductor entries; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray

Wago
SKU:
51226841
$7.34
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Description 3-conductor actuator supply terminal block
Remarks

Item properties

Miscellaneous

Name Value Unit
Total number of connection points  4
Total number of potentials  3
Color  gray
Rated voltage (III / 3) [V]  250  V
Rated impulse voltage (III / 3) [kV]  4  kV
Rated current [A]  18  A
Number of levels  3
Connection technology  CAGE CLAMP
Number of connection points connector  4
Actuation type  Operating tool
Connectable conductor materials  Copper
Solid conductor  0.08 2.5 mm / 28 12 AWG
Fine-stranded conductor  0.08 2.5 mm / 28 12 AWG
Strip length  6 7 mm / 0.24 0.28 Inch
Note (conductor cross-section)  12 AWG: THHN, THWN
Type of wiring  Front-entry wiring
Design  horizontal
Marking level  Side marking
Fire load [MJ]  0.169  MJ
Weight [g]  8.817  g
Width  5 mm / 0.197 Inch
Height from upper-edge of DIN-35 rail  39 mm / 1.535 Inch
Depth  68 mm / 2.677 Inch
Type of mounting  DIN-35 x 15 carrier rail
.

The WAGO 270 series triple-deck terminal block is a gray, 3-conductor/4-wire component with four clamps, designed for wire sizes ranging from 0.08mm² to 2.5mm² (#28AWG to #12AWG). It features CAGE CLAMP spring connections, supports a rated current of 18A, and mounts on a DIN-35 rail with a 5mm width. The terminal block also includes side marking slots and is equivalent to model 270572.

Additional Information
actuation type:
Operating tool
color:
Gray
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
CN
depth from upper edge of din rail:
39 mm / 1.535 inch
design:
Horizontal type
fine stranded conductor:
0.08 2.5 mm / 28 12 AWG
fire load:
0.172 MJ
flammability class per ul94:
V0
height:
68 mm / 2.677 inch
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Side marking
mounting type:
DIN-35 rail
nominal voltage iii 3:
250 V
note conductor cross section:
12 AWG: THHN, THWN
packaging type:
Box
rated current:
18 A
rated surge voltage iii 3:
4 kV
solid conductor:
0.08 2.5 mm / 28 12 AWG
strip length:
6 7 mm / 0.24 0.28 inch
weight:
8.817 g
width:
5 mm / 0.197 inch
wiring direction:
Front-entry wiring
