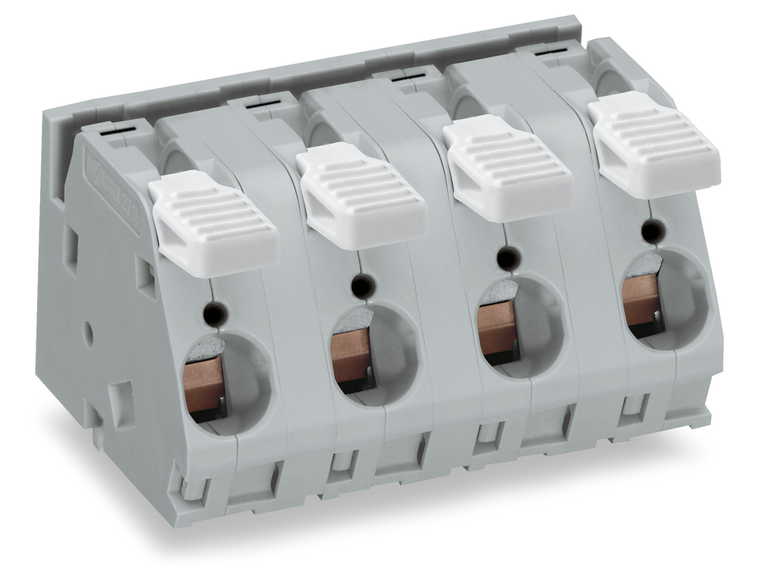

PCB terminal block; operating lever; 16 mm; Pin spacing 15 mm; 8-pole; CAGE CLAMP commoning option
- High-current terminal strips with lever-actuated CAGE CLAMP<sup></sup>
- Tool-free opening and closing fingers open/close levers
- Several clamping units can be held open simultaneously convenient for terminating multi-core cables
- Four solder pins per contact point for high mechanical stability
- 600V UL for 15mm pin spacing
- Versions with commoning option for distributing potentials
The WAGO component equivalent to 2716258 is a specific type of electrical connector or terminal block used in various industrial and automation applications. It is designed to provide reliable and secure connections for electrical wiring, ensuring efficient and safe operation of electrical systems. This component is known for its high quality, durability, and ease of use, making it a preferred choice for professionals in the field.
- actuation type:
- Lever
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 30
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 35 mm / 1.378 inch
- drilled hole diameter with tolerance:
- 1.6 (+0.1) mm
- fine stranded conductor:
- 1.5 16 mm / 16 6 AWG
- fine stranded conductor with insulated ferrule:
- 1.5 10 mm
- fine stranded conductor with uninsulated ferrule:
- 1.5 10 mm
- fire load:
- 1.954 MJ
- flammability class per ul94:
- V0
- height:
- 33.3 mm / 1.311 inch
- height from the surface:
- 28.8 mm / 1.134 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 800 V
- number of solder pins per potential:
- 4
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 15 mm / 0.591 inch
- pole no:
- 8
- rated current:
- 76 A
- rated current ul use group b:
- 65 A
- rated current ul use group c:
- 65 A
- rated surge voltage ii 2:
- 8 kV
- rated surge voltage iii 2:
- 8 kV
- rated surge voltage iii 3:
- 8 kV
- rated voltage iii 2:
- 1000 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.95 x 1.2 mm
- solder pin length:
- 4.5 mm
- solid conductor:
- 1.5 16 mm / 16 6 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 101.707 g
- width:
- 116.5 mm / 4.587 inch
