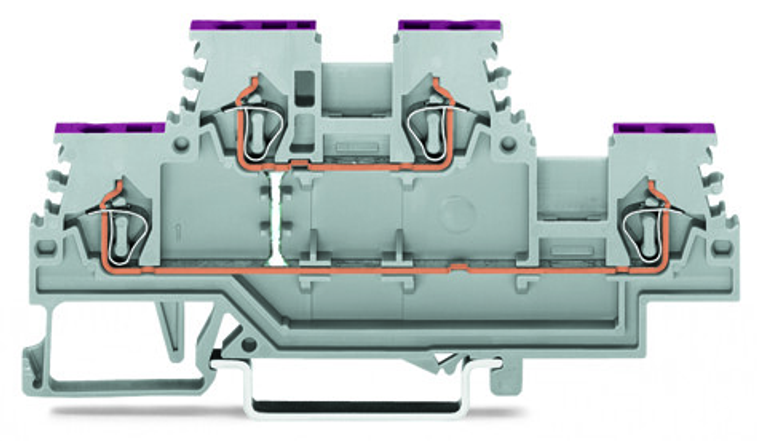

WAGO 279-508 Double-deck terminal block; 4-conductor through terminal block; L; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 1.5 mm²; CAGE CLAMP; 1,50 mm²; gray
Wago
$10.65
Double-deck terminal block; 4-conductor through terminal block; L; suitable for Ex i applications; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 1.5 mm²; 1,50 mm²; gray.
The WAGO 279 series is a gray, double-deck feed-through terminal block with internal commoning and side marking slots, marked with "L". It features one feed-through pole with two clamps on each level, accommodating wire sizes from 0.08mm² to 1.5mm² (#28AWG to #16AWG). The terminal block supports a rated current of 18A and utilizes CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 4mm, equivalent to model 279508.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 39 mm / 1.535 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 0.146 MJ
- flammability class per ul94:
- V0
- height:
- 85 mm / 3.346 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 18 A
- rated surge voltage iii 3:
- 6 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 7.841 g
- width:
- 4 mm / 0.157 inch
- wiring direction:
- Front-entry wiring
