WAGO 279-684 3-conductor through terminal block; 1.5 mm²; suitable for Ex i applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; blue
Wago
$2.38
(No reviews yet)
Write a Review
Write a Review
Wago
WAGO 279-684 3-conductor through terminal block; 1.5 mm²; suitable for Ex i applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; blue
3-conductor through terminal block; 1.5 mm²; suitable for Ex i applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; blue.

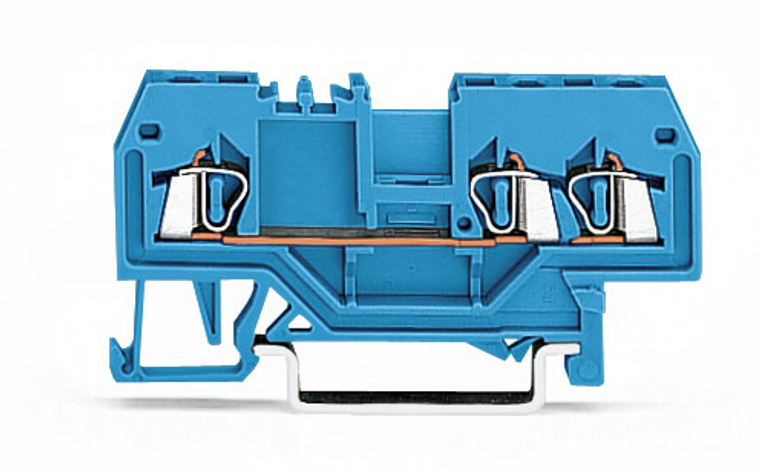

The WAGO 279 series neutral-through terminal block is a blue, single-deck component with a center marking slot, designed for Ex I applications. It features a neutral-through pole (N) with three wire connections (one clamp and two clamps) suitable for wire sizes ranging from 0.08mm² to 1.5mm² or #28AWG to #16AWG. The terminal block supports a rated current of 18A and utilizes CAGE CLAMP spring connections. It is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) with a 4mm width and is equivalent to model 279684.
- actuation type:
- Operating tool
- color:
- Blue
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 27 mm / 1.063 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 0.104 MJ
- flammability class per ul94:
- V0
- height:
- 62.5 mm / 2.461 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 800 V
- packaging type:
- Box
- rated current:
- 18 A
- rated surge voltage iii 3:
- 8 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 5.378 g
- width:
- 4 mm / 0.157 inch
- wiring direction:
- Front-entry wiring
