Wago

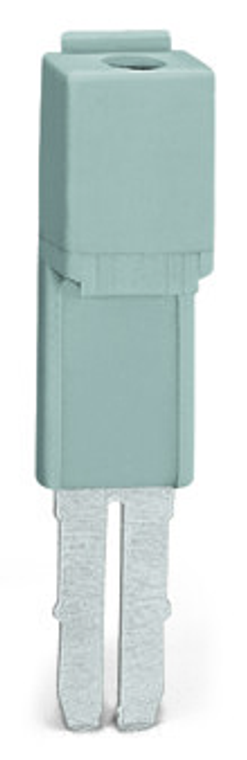

WAGO 280-404 Pack of 25

SKU:

280-404

UPC:

MPN:

2092-1403

Condition:

New

Availability:

In our warehouse: 16

approvals per:

UL 1059

color:

Light gray

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

DE

depth:

14.4 mm / 0.567 inch

drilled hole diameter with tolerance:

1.6 (+0.1) mm

fire load:

0.045 MJ

flammability class per ul94:

V0

height:

23.1 mm / 0.909 inch

height from the surface:

19.5 mm / 0.768 inch

insulation material:

Polyphthalamide (PPA GF)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +100 C

locking of plug in connection:

Locking latch

material group:

I

mating direction to the pcb:

90

mismating protection:

No

nominal voltage ii 2:

630 V

nominal voltage iii 3:

250 V

packaging type:

Box

pcb contact:

THT

pin spacing:

5 mm / 0.197 inch

pole no:

3

rated current:

16 A

rated current ul use group b:

15 A

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage iii 2:

320 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

safety information 1:

The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en

solder pin diameter:

1.4 mm

solder pin length:

3.6 mm

weight:

2.120 g

width:

17.2 mm / 0.677 inch
