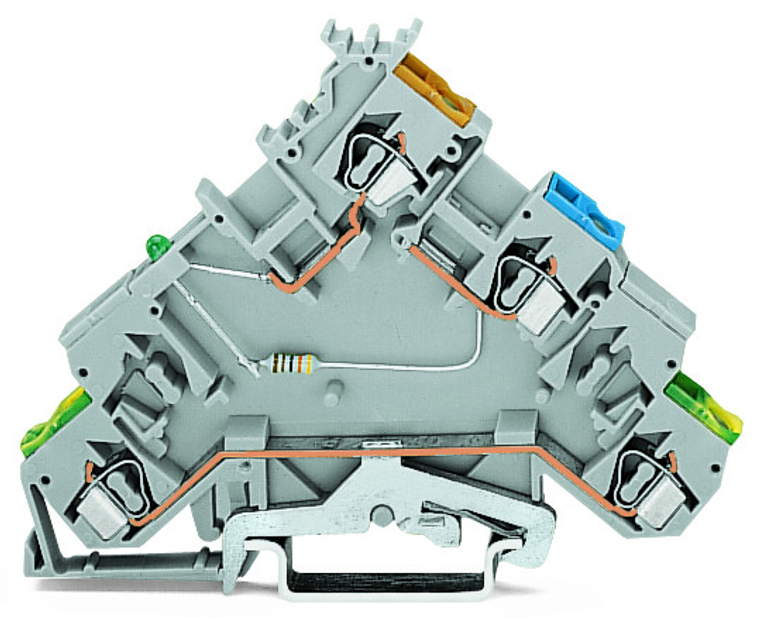

WAGO 280-566/281-496 3-conductor sensor supply terminal block; LED (green); for NPN-(low-side) switching sensors; Power supply from sensor side; with colored conductor entries; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray
Wago
$14.91
(No reviews yet)
Write a Review
Write a Review
Wago
WAGO 280-566/281-496 3-conductor sensor supply terminal block; LED (green); for NPN-(low-side) switching sensors; Power supply from sensor side; with colored conductor entries; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray
3-conductor sensor supply terminal block; LED (green); for NPN-(low-side) switching sensors; Power supply from sensor side; with colored conductor entries; 2.5 mm; CAGE CLAMP.
The Sensr. suppl. terminal block from WAGO's 280 series is a triple-deck terminal block featuring a green LED for 24Vdc and a center marking slot, designed for NPN (low-side) switching sensors with power supplied from the sensor side. It is gray in color, accommodates 3 conductors and 2 wires with 2 clamps, and supports wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #12AWG. The terminal block is rated for a current of 20A, utilizes CAGE CLAMP spring connections, and is mounted on a DIN-35 rail with a width of 5mm, equivalent to model number 280566281496.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- color:
- Gray
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 55.5 mm / 2.185 inch
- design:
- Angled
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.179 MJ
- flammability class per ul94:
- V0
- height:
- 80 mm / 3.15 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- note conductor cross section:
- 12 AWG: THHN, THWN
- note on rated current 1:
- LED power consumption: 4.8 mA
- packaging type:
- Box
- rated current:
- 20 A
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 7.913 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
