Wago

WAGO 280-852/281-414

(No reviews yet) Write a Review
SKU:
280-852/281-414
MPN:
280-852/281-414
Condition:
New
type of fuse:
Minature fuse 500 mA FF
color:
Gray
country of origin sales organisation germany:
DE
fire load:
0.067 MJ
insulation material:
Polyamide (PA66)
marking level:
Without marking level
nominal voltage iii 3:
125 V
note on rated current 1:
Leakage current in case of a blown fuse: LED 5 20 mA
operation status indicator:
30 65 V
packaging type:
Box
rated current:
0.208333333333333
ratings note:
Electrical ratings are given by the fuse and blown fuse indication.
weight:
2.770 g
width:
5 mm / 0.197 inch
  • Wago 280-852/281-414
  • Wago 280-852/281-414
$35.44

Description

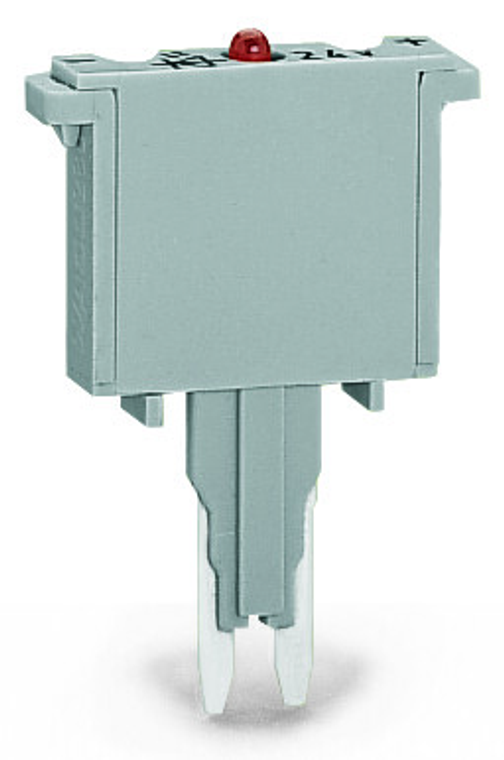

Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 30 - 65 V; 500 mA FF; 5 mm wide; gray.

The WAGO 280 series fuse plug features a soldered miniature fuse with a 500mA fast-acting (FF) rating and an LED indicator for supply voltages between 30-65Vdc. It has a rated current of 5A, comes in a gray color, and is designed for plug-in mounting. This product is equivalent to the model number 280852281414.
