Wago 281-915/281-401

WAGO 281-915/281-401 Component terminal block; 2-conductor; with diode 1N5408; anode, right side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP; 4,00 mm²; gray

Wago
SKU:
51168636
$12.35
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Component terminal block; 2-conductor; with diode 1N5408; anode, right side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP; 4,00 mm²; gray.

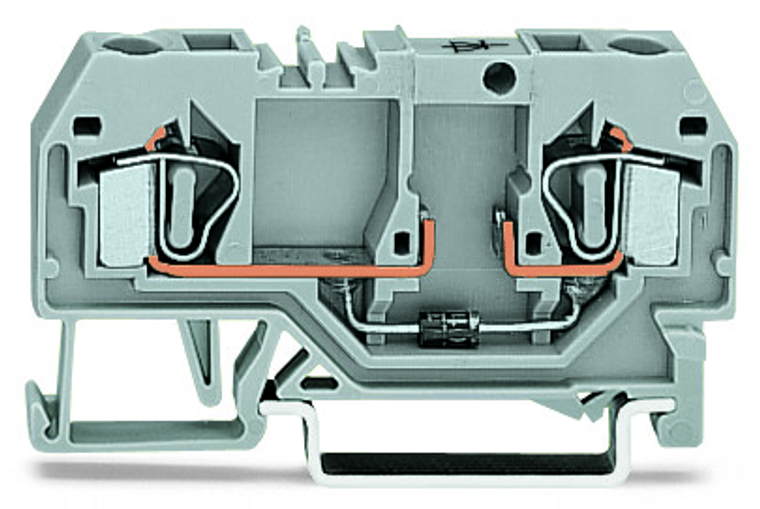

The WAGO 281 series component feed-through terminal block features a single deck with a diode (1N5408, anode on the right side) and a center marking slot. It is gray in color and designed for one feed-through pole with two wires (one clamp each). It supports wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG and is rated for a current of 1.5A. The terminal block uses CAGE CLAMP spring connections and mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 6mm. It is equivalent to the model number 281915281401.

Additional Information
actuation type:
Operating tool
connectable conductor materials note:
Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
color:
Gray
connectable conductor materials:
Copper || Aluminum
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
29 mm / 1.142 inch
design:
Horizontal type
fine stranded conductor:
0.08 4 mm / 28 12 AWG
fire load:
0.143 MJ
flammability class per ul94:
V0
height:
59.2 mm / 2.331 inch
insulation material:
Polyamide (PA66)
marking level:
Center marking
mounting type:
DIN-35 rail
packaging type:
Box
rated current:
1.5 A
ratings per:
IEC/EN 60947-7-1
solid conductor:
0.08 4 mm / 28 12 AWG
strip length:
9 10 mm / 0.35 0.39 inch
weight:
8.784 g
width:
6 mm / 0.236 inch
wiring direction:
Front-entry wiring
