Wago

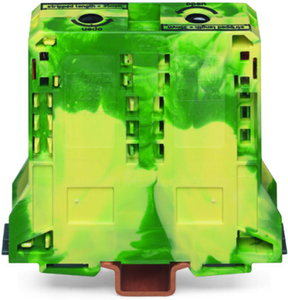

WAGO 285-137/999-950

SKU:

285-137/999-950

UPC:

MPN:

285-137/999-950

Condition:

New

actuation type:

Operating tool

color:

Green-yellow

connectable conductor materials:

Copper

connection technology:

POWER CAGE CLAMP

country of origin sales organisation germany:

PL

depth from upper edge of din rail:

63 mm / 2.48 inch

design:

Horizontal type

fine stranded conductor:

6 35 mm / 8 2 AWG

fine stranded conductor with insulated ferrule:

6 35 mm / 8 2 AWG

fine stranded conductor with uninsulated ferrule:

6 35 mm / 8 2 AWG

fire load:

0.078 MJ

flammability class per ul94:

V0

height:

86 mm / 3.386 inch

insulation material:

Polyamide (PA66)

marking level:

Side marking

mounting type:

DIN-35 rail

packaging type:

Box

ratings per:

IEC/EN 60947-7-2

safety information 1:

Only suitable for DIN 35 x 15 rail

solid conductor:

6 35 mm / 8 2 AWG

stranded conductor:

6 35 mm / 8 2 AWG

strip length:

25 mm / 0.98 inch

weight:

108.221 g

width:

16 mm / 0.63 inch

wiring direction:

Side-entry wiring
