Empty housing.

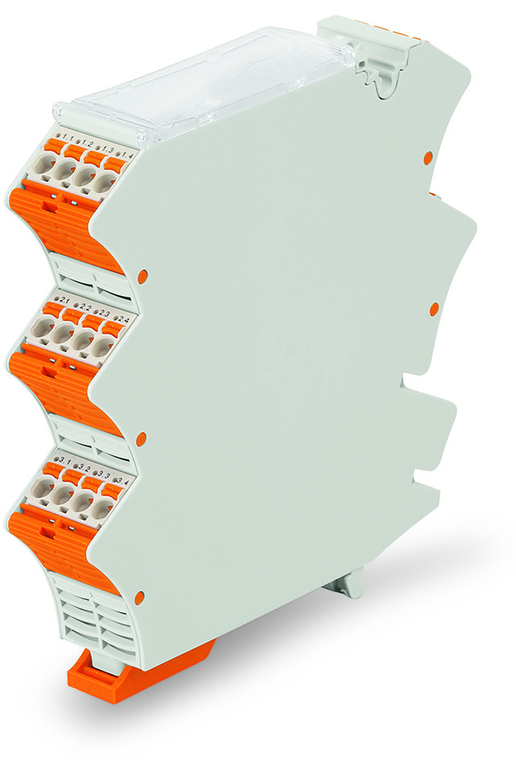

The WAGO 2857 series is an empty, customizable universal component housing designed for DIN-35 rail mounting, featuring a triple-deck configuration. It is white in color and suitable for wire sizes ranging from 0.2mm² to 2.5mm² or #24AWG to #12AWG. The housing includes Push-in CAGE CLAMP spring connections and has a width of 22.5mm, equivalent to model 2857122.
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- connection technology:
- Push-in CAGE CLAMP«
- contact material:
- Electrolytic copper (ECu)
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 107 mm / 4.213 inch
- fine stranded conductor:
- 0.2 ª 2.5 mm / 24 ª 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.2 ª 1.5 mm / 24 ª 16 AWG
- fine stranded conductor with uninsulated ferrule:
- 0.2 ª 2.5 mm / 24 ª 14 AWG
- fire load:
- 1.796 MJ
- flammability class per ul94:
- V0
- height:
- 110 mm / 4.331 inch
- housing material:
- PC
- mounting type:
- DIN-35 rail
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- number of jumper slots:
- 2
- number of levels:
- 3
- packaging type:
- Box
- pin spacing:
- 5 mm / 0.197 inch
- pole no:
- 4
- rated current:
- 16 A
- rated current csa use group b:
- 15 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 15 A
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- solid conductor:
- 0.2 ª 2.5 mm / 24 ª 12 AWG
- strip length:
- 9 ª 10 mm / 0.35 ª 0.39 inch
- surrounding air temperature operation:
- -40 ª 70 C
- surrounding air temperature storage:
- -40 ª 85 C
- weight:
- 99.657 g
- width:
- 22.5 mm / 0.886 inch
