Wago

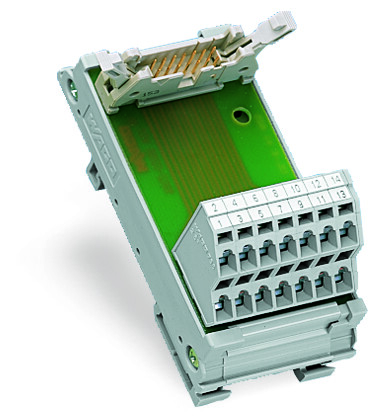

WAGO 289-613

SKU:

289-613

UPC:

MPN:

289-613

Condition:

New

connection technology 2:

CAGE CLAMP

connection type 1:

System

connection type 2:

Field

contact material connector:

Au over Ni

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

48 mm / 1.89 inch

design 2:

PCB terminal blocks (double-deck)

fine stranded conductor 2:

0.08 2.5 mm / 28 12 AWG

fire load:

0.671 MJ

height:

85 mm / 3.346 inch

housing design:

Mounting carrier

mating direction:

Vertical

mounting type:

DIN-35 rail

nominal current:

0.0416666666666667

note conductor cross section:

12 AWG: THHN, THWN

operating voltage:

¤100 VAC: ¤125 VDC

packaging type:

Box

performance level:

3 / 50 mating cycles

pluggable connectors:

DIN 41651 male connector

pole no:

16

pole number 2:

16

pollution degree:

2

protection type:

IP20

rated surge voltage:

0.8 kV

rated voltage:

100 V

relative humidity:

¤ 85% (non-condensing)

solid conductor 2:

0.08 2.5 mm / 28 12 AWG

strip length 2:

5 6 mm / 0.2 0.24 inch

surrounding air temperature operation:

-20 55 C

surrounding air temperature storage:

-40 70 C

wago connector 2:

WAGO 736 Series

weight:

58.728 g

width:

45 mm / 1.772 inch
