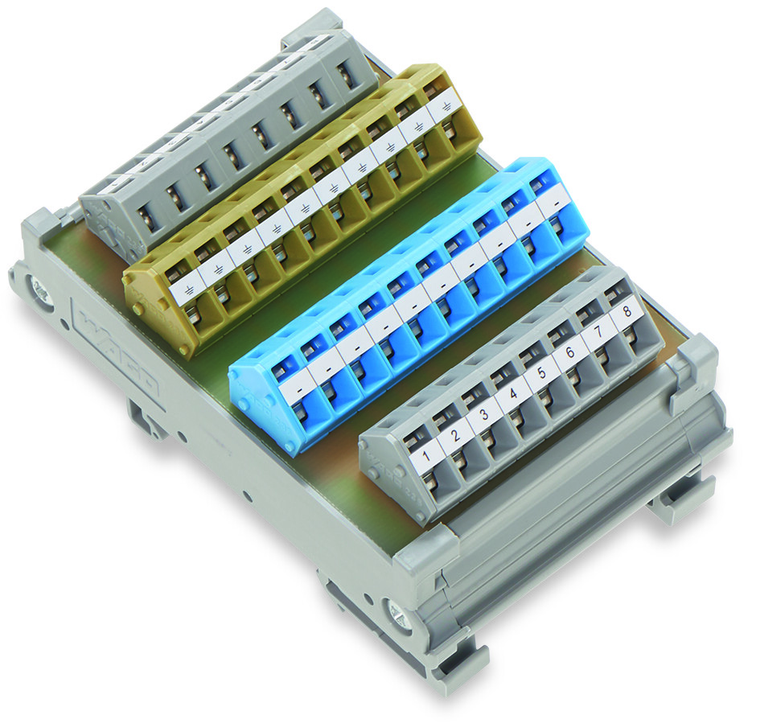

Sensor/actuator module; 8 channels digital output; 2-wire connection; with functional ground; in mounting carrier; 2,50 mm².
The WAGO 289 series digital output interface module features functional grounding and is designed for mounting in a carrier with CAGE CLAMP spring connections. It is suitable for DIN-35 rail mounting with a width of 56mm and has an IP20 protection rating. The module operates within an ambient temperature range of -20°C to +50°C and is equivalent to model 289671.
- circuit type:
- 2-wire connection
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- current per connection max:
- 0.0416666666666667
- depth from upper edge of din rail:
- 34 mm / 1.339 inch
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.800 MJ
- height:
- 85 mm / 3.346 inch
- housing design:
- Mounting carrier
- inputs outputs:
- 8-channel digital output
- mounting type:
- DIN-35 rail
- note conductor cross section:
- 12 AWG: THHN, THWN
- operating voltage:
- ¤100 VAC: ¤125 VDC
- packaging type:
- Box
- pollution degree:
- 2
- rated surge voltage:
- 1.5 kV
- rated voltage:
- 100 V
- relative humidity:
- ¤ 85% (non-condensing)
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- specialty functions:
- With functional ground
- strip length:
- 5 6 mm / 0.2 0.24 inch
- surrounding air temperature operation:
- -20 50 C
- surrounding air temperature storage:
- -40 70 C
- total current:
- 0.333333333333333
- wago connector:
- WAGO 236 Series
- wago connector 4:
- WAGO 736 Series
- weight:
- 70.800 g
- width:
- 56 mm / 2.205 inch
