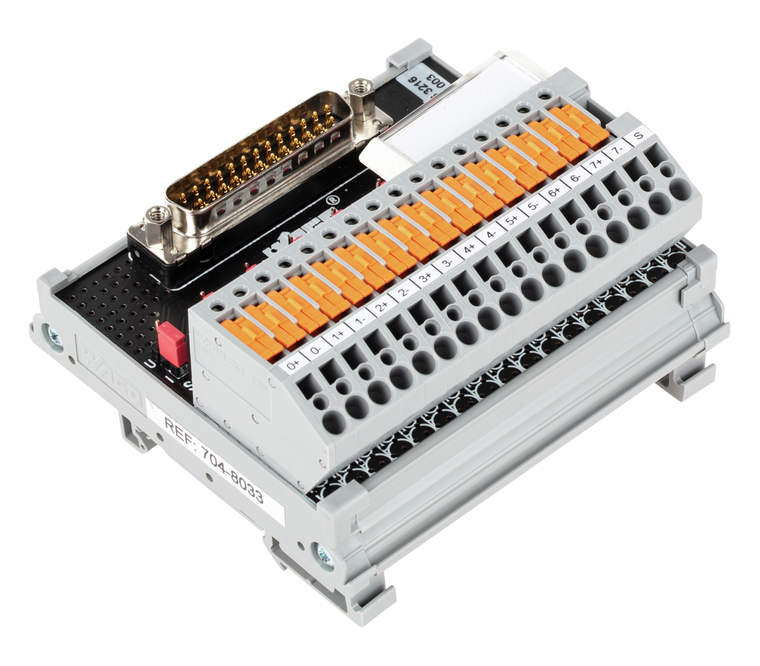

Interface module for system wiring; with solder pin; Male connector; 25-pole; 8-channel analog input or output; with disconnect terminal block; in mounting carrier.
The WAGO 704 series interface module is designed for mounting on a DIN-35 rail and features a 25-pin D-sub male connector for system connections and a 17-pin spring CAGE CLAMP for field connections, accommodating cables from 0.08 to 1.5mm². It includes 8 analog inputs and 8 analog outputs, supports vertical connections, and is rated for ambient temperatures ranging from -20°C to +50°C. The module has a width of 90mm and is equivalent to model 7048033.
- circuit type:
- 2-wire connection
- compatible plc i o card types:
- 6ES7 313-5BE01-0AB0 || 6ES7 313-5BG04-0AB0 || 6ES7 314-6BF01-0AB0 || 6ES7 314-6BG03-0AB0 || 6ES7 314-6CF01-0AB0 || 6ES7 314-6CG03-0AB0 || 6ES7 511-1CK00-0AB0 || 6ES7 512-1CK00-0AB0 || TSX AEY 420 || TSX AEY 800 || TSX AEY 810 || TSX AEY 1600 || TSX A
- compatible plc modules:
- Siemens S7-300 || Siemens S7-1500 || Schneider TSX
- connection type 1:
- System
- connection type 2:
- Field
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 46 mm / 1.811 inch
- design 2:
- PCB terminal blocks
- fine stranded conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 2.350 MJ
- height:
- 85 mm / 3.346 inch
- inputs outputs:
- 8-channel analog input or output
- internal fuse:
- No
- limiting continuous current:
- 0.0416666666666667
- mating direction:
- Vertical
- mounting type:
- DIN-35 rail
- note conductor cross section:
- 12 AWG: THHN, THWN
- operating voltage:
- ¤48 VDC
- packaging type:
- Box
- pluggable connectors:
- D-sub male connector
- pole number 1:
- 25
- pole number 2:
- 17
- pollution degree:
- 2
- rated surge voltage:
- 0.8 kV
- rated voltage:
- 50 V
- relative humidity:
- ¤ 85% (non-condensing)
- solid conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- specialty functions:
- With disconnect/test terminal blocks
- strip length 2:
- 8 9 mm / 0.31 0.35 inch
- surrounding air temperature operation:
- -20 50 C
- surrounding air temperature storage:
- -40 70 C
- wago connector 3:
- WAGO 236 Series
- weight:
- 140.855 g
- width:
- 90 mm / 3.543 inch
