WAGO 706-3340/302-100
Wago
$194.70

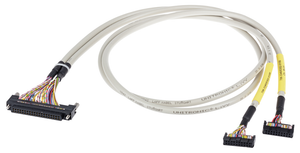

System cable; for Schneider Modicon M340; 2 x 16 digital inputs or outputs; Length: 1 m; Conductor cross-section: 0.14 mm².
The WAGO component equivalent to 7063340302100 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- cable length:
- 1 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- BMX DDI 3202K || BMX DDI 6402K || BMX DDM 3202K || BMX DDO 3202K || BMX DDO 6402K
- compatible plc modules:
- Schneider Modicon M340
- connection type 1:
- System
- connection type 2:
- System
- connection type 3:
- System
- connector 2:
- Pluggable connector per DIN 41651: Female connector
- connector 3:
- Fujitsu ref FCN-367-J40/ AU/ H
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0416666666666667
- fire load:
- 0.000 MJ
- inputs outputs:
- 2 x 16 digital inputs or outputs
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.
- operating voltage:
- ¤ AC/DC 35 V
- pluggable connectors:
- Pluggable connector per DIN 41651: Female connector
- pole number 1:
- 20
- pole number 2:
- 20
- pole number 3:
- 40
- surrounding air temperature operation:
- -20 50 C
- weight:
- 196.000 g
- wire cross section:
- 0.14 mm
