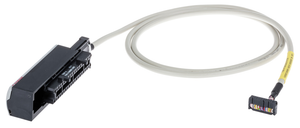

System cable; for Rockwell Control Logix; 8 digital outputs for higher voltages, var. 1; Length: 1 m; Conductor cross-section: 0.34 mm².
The WAGO component equivalent to 7064756202100 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- cable length:
- 1 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- 1756 - OC8
- compatible plc modules:
- Rockwell Control Logix
- connection type 1:
- System
- connection type 2:
- System
- connector 2:
- Allen Bradley 1756-TBSH
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.75 A
- fire load:
- 0.000 MJ
- inputs outputs:
- 8 digital outputs: for higher voltages
- note:
- If less than 3 channels used at the same time, the maximum current per wire 2 A and up to 5 A (amb. T 30 C) or 3.5 A (amb. T 50 C) on the power supply pins N/L. If more than 3 channels used at the same time, the maximum current per wire 0.75 A an
- operating voltage:
- ¤ AC/DC 250 V
- packaging type:
- Bag
- pluggable connectors:
- WAGO 231 Series
- pole number 1:
- 10
- pole number 2:
- 20
- surrounding air temperature operation:
- -20 50 C
- weight:
- 227.000 g
- wire cross section:
- 0.34 mm
