Wago

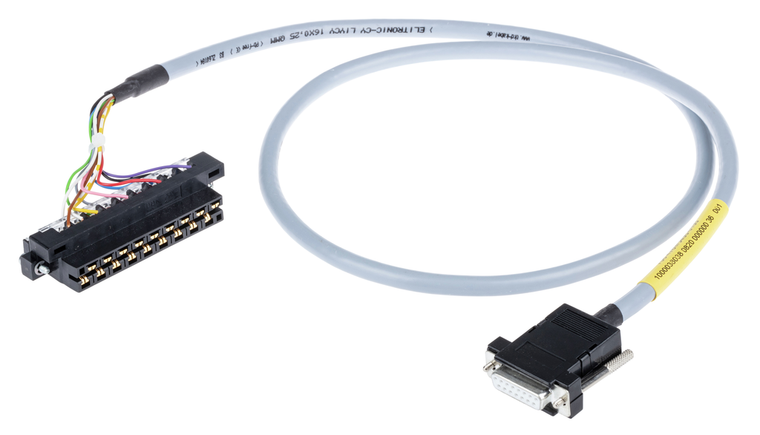

Wago 706-4769/404-200 S-Cable, ROCKWELL COMPACT LOGIX A6ERTD

SKU:

706-4769/404-200

UPC:

MPN:

706-4769/404-200

Condition:

New

cable length:

2 m

cable type:

LiYCY

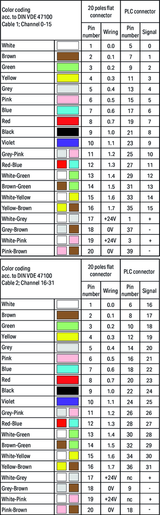

color code:

Per DIN VDE 47100

compatible plc i o card types:

1769 - IR6

compatible plc modules:

Rockwell Compact Logix

connection type 1:

System

connection type 2:

System

connection type 3:

System

connector 2:

Sub-Min-D: female connector

connector 3:

Rockwell-RTBN18

current per wire max:

0.0833333333333333

fire load:

0.000 MJ

inputs outputs:

6 analog inputs: for RTD

note:

When using more than 10 wires, the maximum current per wire must be reduced to 1 A.

operating voltage:

ëñ AC/DC 35 V

packaging type:

Box

pluggable connectors:

D-sub female connector

pole number 1:

25

pole number 2:

25

pole number 3:

18

surrounding air temperature operation:

-20 Ǫ 50 C

weight:

1.111 g

wire cross section:

0.25 mm
