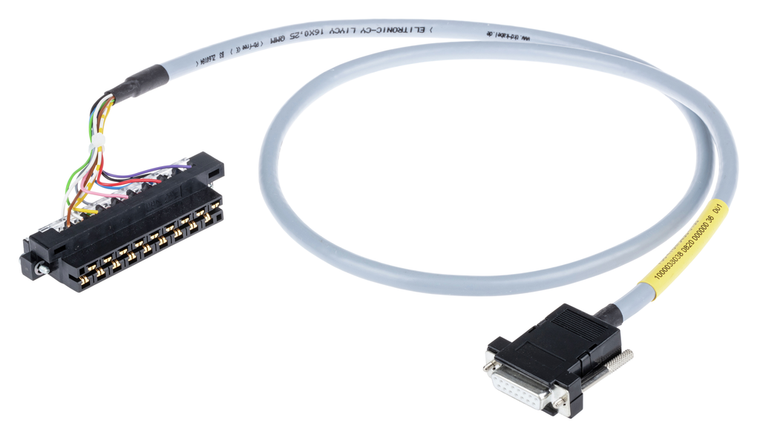

Wago 706-4769/600-300 S-Cable, ROCKWELL COMPACT LOGIX A6ESI
Wago
System cable; for Rockwell Compact Logix; 6 analog inputs or outputs (current); Length: 3 m; Conductor cross-section: 0.25 mm²
- cable length:
- 3 m
- cable type:
- LiYCY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- 1769 - IF4XOF2 (F)
- compatible plc modules:
- Rockwell Compact Logix
- connection type 1:
- System
- connection type 2:
- System
- connector 2:
- Rockwell-RTBN18
- current per wire max:
- 0.0833333333333333
- fire load:
- 0.000 MJ
- inputs outputs:
- 6 analog inputs or outputs: current
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 1 A.
- operating voltage:
- ëñ AC/DC 35 V
- packaging type:
- Box
- pluggable connectors:
- D-sub female connector
- pole number 1:
- 25
- pole number 2:
- 18
- surrounding air temperature operation:
- -20 ê 50 C
- weight:
- 1.111 g
- wire cross section:
- 0.25 mm
- QN-QUOTE-REQUEST:
- true
