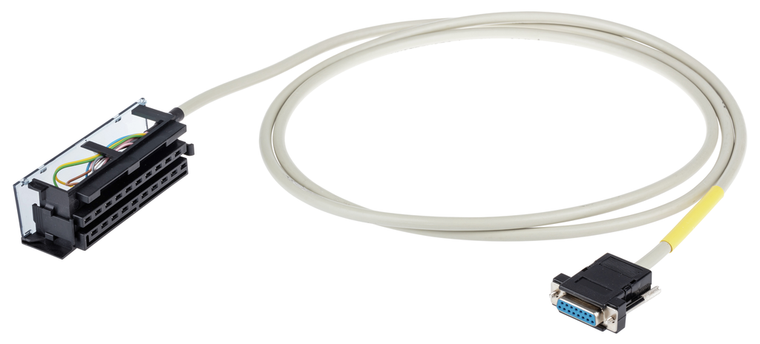

System cable; for Gefanuc 9030; 4 analog inputs; Length: 1 m; Conductor cross-section: 0.25mm.
The WAGO component equivalent to 7065030400100 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- cable length:
- 1 m
- cable type:
- LiYCY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- IC693 ALG220 || IC693 ALG221
- compatible plc modules:
- GE Fanuc 9030
- connection type 1:
- System
- connection type 2:
- System
- connector 2:
- GeFanuc IC 693 ACC 311
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0833333333333333
- fire load:
- 0.000 MJ
- inputs outputs:
- 4 analog inputs
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 1 A.
- operating voltage:
- ¤ AC/DC 35 V
- packaging type:
- Bag
- pluggable connectors:
- D-sub female connector
- pole number 1:
- 15
- pole number 2:
- 20
- surrounding air temperature operation:
- -20 50 C
- weight:
- 238.000 g
- wire cross section:
- 0.25 mm
