WAGO 711-140
Wago
$11.94

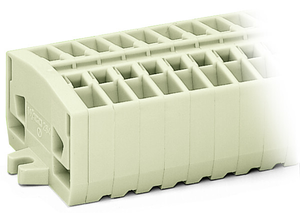

Transformer terminal block; 10-pole; CAGE CLAMP connection for conductors; 4,00 mm²; gray.
The WAGO 711 series transformer terminal block connector is a gray, 10-pole (10P) unit with a 4mm2 nominal cross-section, capable of handling a rated current of 25A. It features CAGE CLAMP spring connections and is designed for plug-in mounting, equivalent to model 711140.
- color:
- Gray
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 23.5 mm / 0.925 inch
- fire load:
- 0.681 MJ
- height:
- 35 mm / 1.378 inch
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- packaging type:
- Box
- pole no:
- 10
- rated current:
- 25 A
- rated surge voltage iii 2:
- 8 kV
- rated voltage iii 2:
- 800 V
- ratings per:
- IEC/EN 60664-1
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 33.100 g
- width:
- 75 mm / 2.953 inch
