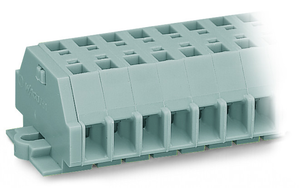

Compact transformer terminal block; with marker slot for WTB markers; 10-pole
Electrical Data
- Rated voltage (III / 2): 800 V
- Rated impulse voltage (III / 2): 8 kV
- Rated current: 25 A
- Legend (ratings): (III / 2) Overvoltage category III / Pollution degree 2
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Strip length: 9 10 mm / 0.35 0.39 inch
- No. of poles: 10
- Total number of connection points: 10
- Total number of potentials: 10
- Number of connection types: 1
Geometrical Data
- Width: 75 mm / 2.953 inch
- Height: 35 mm / 1.378 inch
- Depth: 23.5 mm / 0.925 inch
Material Data
- Color: gray
- Fire load: 0.671 MJ
- Weight: 33.440 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918819640
- Customs Tariff No.: 85369010000
The Xfmr. term. blck. connector from WAGO's 711 series is a gray, 10-pole (10P) connector with a 4mm2 nominal cross-section, rated for a current of 25A. It features CAGE CLAMP spring connections and is designed for plug-in mounting. This connector is equivalent to the model 711160.
- color:
- Gray
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 23.5 mm / 0.925 inch
- fire load:
- 0.681 MJ
- height:
- 35 mm / 1.378 inch
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- packaging type:
- Box
- pole no:
- 10
- rated current:
- 25 A
- rated surge voltage iii 2:
- 8 kV
- rated voltage iii 2:
- 800 V
- ratings per:
- IEC/EN 60664-1
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 33.440 g
- width:
- 75 mm / 2.953 inch
