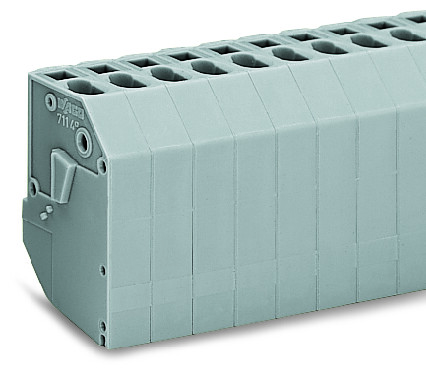

WAGO 711-182 Transformer terminal block; 2-pole; CAGE CLAMP connection for conductors; 4,00 mm²; orange
Wago
$2.31
(No reviews yet)
Write a Review
Write a Review
Wago
WAGO 711-182 Transformer terminal block; 2-pole; CAGE CLAMP connection for conductors; 4,00 mm²; orange
Transformer terminal block; 2-pole; CAGE CLAMP connection for conductors; 4,00 mm²; orange.
The WAGO 711 series transformer terminal block connector is an orange, 2-pole (2P) device with a 4mm2 nominal cross-section and a rated current of 25A. It features CAGE CLAMP spring connections and is designed for plug-in mounting. This connector is equivalent to model 711182.
- color:
- Orange
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 23.5 mm / 0.925 inch
- fire load:
- 0.163 MJ
- height:
- 35 mm / 1.378 inch
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- packaging type:
- Box
- pole no:
- 2
- rated current:
- 25 A
- rated surge voltage iii 2:
- 8 kV
- rated voltage iii 2:
- 800 V
- ratings per:
- IEC/EN 60664-1
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 7.532 g
- width:
- 15 mm / 0.591 inch
