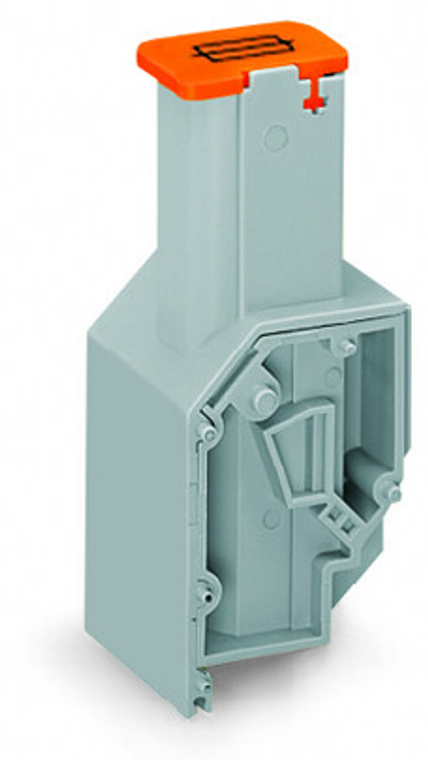

Transformer fuse terminal block; for fuse 6.35 x 32 mm; CAGE CLAMP connection for conductors; 22.5 mm wide; 4,00 mm²; orange.
The WAGO 711 series transformer fuse terminal block connector is an orange, 1-pole (1P) component with a nominal cross-section of 4mm², rated for a current of 10A. It features CAGE CLAMP spring connections and is designed for plug-in mounting, equivalent to model 711403.
- color:
- Orange
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 23.5 mm / 0.925 inch
- fire load:
- 0.240 MJ
- height:
- 57.1 mm / 2.248 inch
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- packaging type:
- Box
- rated current:
- 0.416666666666667
- rated surge voltage iii 2:
- 8 kV
- rated voltage iii 2:
- 800 V
- ratings per:
- IEC/EN 60664-1
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 13.342 g
- width:
- 22.5 mm / 0.886 inch
