Wago

WAGO 727-129

(No reviews yet) Write a Review
SKU:
727-129
MPN:
727-129
Condition:
New
actuation type:
Operating tool
color:
Gray
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
76 mm / 2.992 inch
design:
Horizontal type
fine stranded conductor:
0.08 1.5 mm / 28 16 AWG
fire load:
1.187 MJ
flammability class per ul94:
V0
height:
226 mm / 8.898 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking:
Plain
marking level:
Center marking
mounting type:
DIN-35 rail
nominal voltage iii 3:
250 V
packaging type:
Box
rated current:
0.416666666666667
rated surge voltage iii 3:
4 kV
solid conductor:
0.08 1.5 mm / 28 16 AWG
strip length:
8 10 mm / 0.31 0.39 inch
weight:
73.838 g
width:
7.62 mm / 0.3 inch
wiring direction:
Front-entry wiring
$34.25

Description

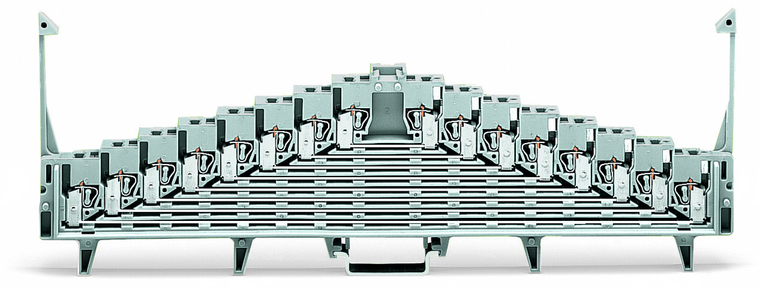

8-level same potential terminal block.

The WAGO 727 series feed-through terminal block is designed for matrix patching and features 8 decks/levels, cover locking clips, and a center marking slot. It is gray in color and accommodates 8 feed-through poles, supporting 32 wires with 16 clamps on each side. Suitable for wire sizes ranging from 0.08mm² to 1.5mm² or #28AWG to #16AWG, it has a rated current of 10A and utilizes CAGE CLAMP spring connections. The terminal block mounts on a DIN-35 rail with dimensions of 35 x 15 mm and a width of 7.62 mm, equivalent to model 727129.
