Wago

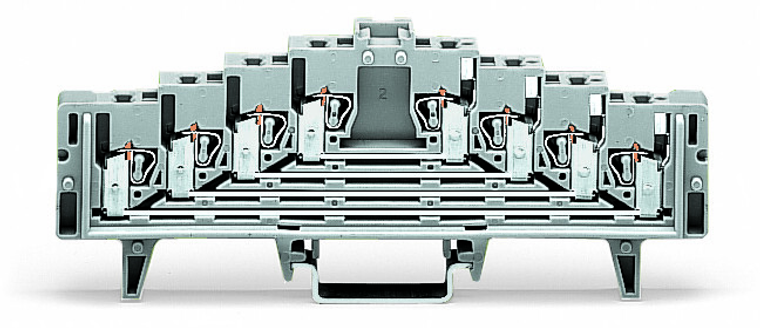

WAGO 727-220/024-000

SKU:

727-220/024-000

UPC:

MPN:

727-220/024-000

Condition:

New

actuation type:

Operating tool

color:

Gray

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

44.5 mm / 1.752 inch

design:

Horizontal type

fine stranded conductor:

0.08 1.5 mm / 28 16 AWG

fire load:

0.550 MJ

flammability class per ul94:

V0

height:

126 mm / 4.961 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking:

D-c-b-a--a-b-c-d

marking level:

Center marking

mounting type:

DIN-35 rail

nominal voltage iii 3:

250 V

packaging type:

Box

rated current:

0

rated surge voltage iii 3:

4 kV

solid conductor:

0.08 1.5 mm / 28 16 AWG

strip length:

8 10 mm / 0.31 0.39 inch

weight:

32.000 g

width:

7.62 mm / 0.3 inch

wiring direction:

Front-entry wiring
