Wago

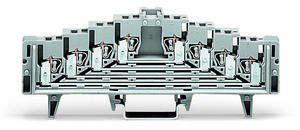

WAGO 727-222

(No reviews yet) Write a Review
SKU:
727-222
MPN:
727-222
Condition:
New
actuation type:
Operating tool
color:
White
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
44.5 mm / 1.752 inch
design:
Horizontal type
fine stranded conductor:
0.08 1.5 mm / 28 16 AWG
fire load:
0.550 MJ
flammability class per ul94:
V0
height:
126 mm / 4.961 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking:
Plain
marking level:
Center marking
mounting type:
DIN-35 rail
nominal voltage iii 3:
250 V
packaging type:
Box
rated current:
0
rated surge voltage iii 3:
4 kV
solid conductor:
0.08 1.5 mm / 28 16 AWG
strip length:
8 10 mm / 0.31 0.39 inch
weight:
32.100 g
width:
7.62 mm / 0.3 inch
wiring direction:
Front-entry wiring
$18.06

Description

4-level terminal block for matrix patching; without locking clips; one potential per level; with 2.3 mm Ø test port; for 35 x 7.5 mounting rail; 1.5 mm²; 1,50 mm²; white.

The WAGO 727 series feed-through terminal block is designed for matrix patching with four decks/levels and features a center marking slot. It is white and accommodates four feed-through poles, supporting 16 wires with 8 clamps on each side. Suitable for wire sizes ranging from 0.08mm² to 1.5mm² or #28AWG to #16AWG, it has a rated current of 12A. The terminal block uses CAGE CLAMP spring connections and mounts on a DIN-35 rail with dimensions of 35 x 7.5mm and a width of 7.62mm. It is equivalent to the model 727222.
