Wago

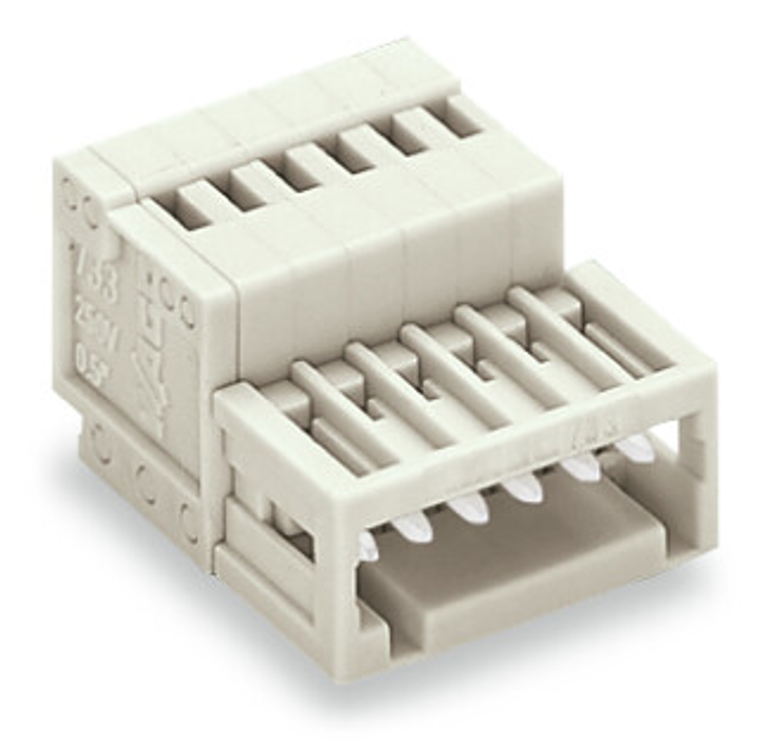

WAGO 733-210

SKU:

733-210

UPC:

MPN:

733-210

Condition:

New

actuation type:

Operating tool

approvals per:

CSA

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Light gray

conductor entry direction to mating direction:

0

connection technology:

CAGE CLAMP

connector connection type:

For conductor

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

PL

depth:

20.3 mm / 0.799 inch

fine stranded conductor:

0.08 0.5 mm / 28 20 AWG

fine stranded conductor with insulated ferrule:

0.25 0.34 mm

fine stranded conductor with uninsulated ferrule:

0.25 0.34 mm

fire load:

0.097 MJ

flammability class per ul94:

V0

height:

11.8 mm / 0.465 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +100 C

locking of plug in connection:

Without

material group:

I

mismating protection:

Yes

nominal voltage ii 2:

320 V

nominal voltage iii 3:

100 V

packaging type:

Box

pin spacing:

2.5 mm / 0.098 inch

pole no:

10

rated current:

0.25

rated current csa use group b:

0.166666666666667

rated current ul use group b:

0.166666666666667

rated surge voltage ii 2:

2.5 kV

rated surge voltage iii 2:

2.5 kV

rated surge voltage iii 3:

2.5 kV

rated voltage csa use group b:

150 V

rated voltage iii 2:

160 V

rated voltage ul use group b:

150 V

ratings per:

IEC/EN 60664-1

safety information 1:

The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

solid conductor:

0.08 0.5 mm / 28 20 AWG

strip length:

5 6 mm / 0.2 0.24 inch

weight:

4.909 g

width:

27.5 mm / 1.083 inch
