Wago

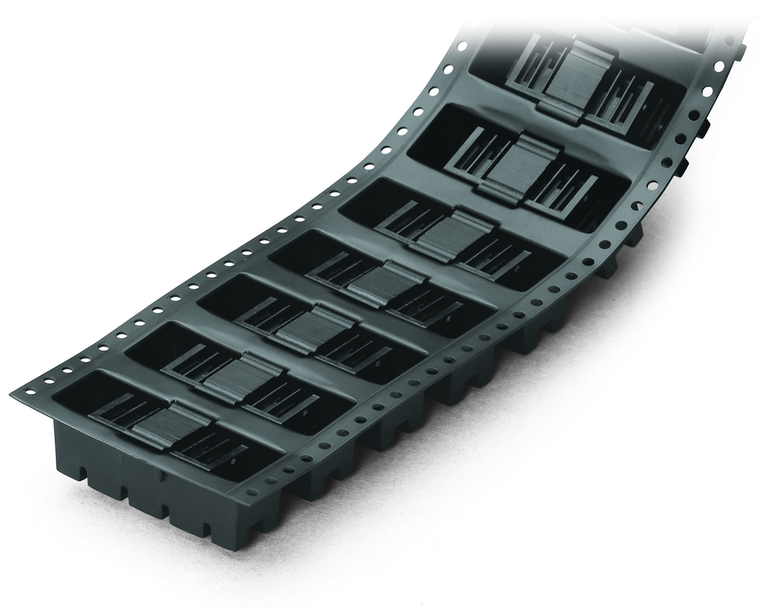

WAGO 733-372/105-604/997-406 Pack of 300

SKU:

733-372/105-604/997-406

UPC:

MPN:

733-372/105-604/997-406

Condition:

New

approvals per:

UL 1059

color:

Black

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

DE

depth:

8.9 mm / 0.35 inch

fire load:

0.037 MJ

flammability class per ul94:

V0

height:

10.2 mm / 0.402 inch

height from the surface:

7.8 mm / 0.307 inch

insulation material:

Polyphthalamide (PPA GF)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +100 C

material group:

I

mating direction to the pcb:

0

mismating protection:

Yes

nominal voltage ii 2:

320 V

nominal voltage iii 3:

80 V

number of solder pins per potential:

1

packaging type:

Bag

pcb contact:

THR

pin spacing:

2.5 mm / 0.098 inch

plated through hole diameter thr:

1.2 (+0.1) mm

pole no:

12

rated current:

0.25

rated current csa use group b:

0.166666666666667

rated current ul use group b:

0.166666666666667

rated surge voltage ii 2:

2.5 kV

rated surge voltage iii 2:

2.5 kV

rated surge voltage iii 3:

2.5 kV

rated voltage csa use group b:

150 V

rated voltage iii 2:

160 V

rated voltage ul use group b:

150 V

ratings per:

IEC/EN 60664-1

reel diameter of tape and reel packaging:

330 mm

safety information 1:

The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

solder pin arrangement:

Over the entire male connector (in-line)

solder pin dimensions:

0.8 x 0.8 mm

solder pin length:

2.4 mm

tape width:

44 mm

weight:

2.050 g

width:

32.5 mm / 1.28 inch
