WAGO 734-304/019-000 1-conductor male connector, CAGE CLAMP®, light gray

(No reviews yet) Write a Review
SKU:
734-304/019-000
MPN:
60255067
Condition:
New
actuation type:
Operating tool
approvals per:
UL 1059
clamping spring material:
Chrome nickel spring steel (CrNi)
color:
Light gray
conductor entry direction to mating direction:
0
connection technology:
CAGE CLAMP
connector connection type:
For conductor
contact material:
Electrolytic copper (ECu)
contact plating:
Tin-plated
contact type pluggable connector:
Male connector/plug
country of origin sales organisation germany:
PL
depth:
22.3 mm / 0.878 inch
fine stranded conductor:
0.08 1.5 mm / 28 14 AWG
fine stranded conductor with insulated ferrule:
0.25 1.5 mm
fine stranded conductor with uninsulated ferrule:
0.25 1.5 mm
fire load:
0.090 MJ
flammability class per ul94:
V0
height:
13.4 mm / 0.528 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:
-60 +100 C
locking of plug in connection:
Without
material group:
I
mismating protection:
Yes
mounting type:
Mounting flange || Feed-through mounting || Panel mounting
nominal voltage ii 2:
320 V
nominal voltage iii 3:
160 V
note conductor cross section:
Terminating 1.5 mm conductors is possible: however insulation diameter does not allow clamping units to be terminated in a row.
packaging type:
Box
pin spacing:
3.5 mm / 0.138 inch
pole no:
4
rated current:
0.416666666666667
rated current csa use group b:
0.416666666666667
rated current csa use group d:
0.416666666666667
rated current ul use group b:
0.416666666666667
rated current ul use group d:
0.416666666666667
rated surge voltage ii 2:
2.5 kV
rated surge voltage iii 2:
2.5 kV
rated surge voltage iii 3:
2.5 kV
rated voltage csa use group b:
300 V
rated voltage csa use group d:
300 V
rated voltage iii 2:
160 V
rated voltage ul use group b:
300 V
rated voltage ul use group d:
300 V
ratings per:
IEC/EN 60664-1
safety information 1:
The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
solid conductor:
0.08 1.5 mm / 28 14 AWG
strip length:
6 7 mm / 0.24 0.28 inch
weight:
4.288 g
width:
28.8 mm / 1.134 inch

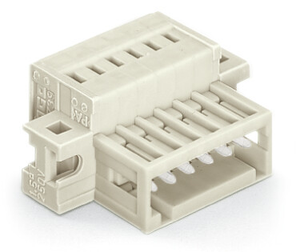

  • Wago 734-304/019-000 Male connector
  • Wago 734-304/019-000 Male connector
  • Wago 734-304/019-000 Male connector
$4.94

Description
Description Male connector; with fixing flanges; 4-pole; Pin spacing 3.5 mm / 0.138 in; 100% protected against mismating; for screw or similar mounting types; for parallel or perpendicular mounting
Remarks Item description:
  • Universal connection for all conductor types
  • Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
  • For wire-to-wire and board-to-wire connections
  • Strain relief plates and housings for factory and in-the-field assembly
  • 100% protected against mismating
  • Coding option available



Item properties

Miscellaneous

Name Value Unit
No. of poles  4
Pin spacing  3.5 mm (0.138 in)
Total number of connection points  4
Total number of potentials  4
Color  light gray
Ratings per  IEC/EN 60664-1
Rated voltage (III / 3) [V]  160  V
Rated impulse voltage (III / 3) [kV]  2.5  kV
Rated voltage (III/2) [V]  160  V
Rated impulse voltage (III / 2) [kV]  2.5  kV
Rated voltage (II / 2) [V]  320  V
Rated impulse voltage (II / 2) [kV]  2.5  kV
Rated current [A]  10  A
Legend for ratings  (III / 2) Overvoltage category III / Pollution degree 2
Number of connection objects  1
Number of levels  1
Connection technology  CAGE CLAMP
Number of connection points connector  1
Actuation type  Operating tool
Solid conductor  0.08 1.5 mm / 28 14 AWG
Fine-stranded conductor  0.08 1.5 mm / 28 14 AWG
Fine-stranded conductor with ferrule with plastic collar  0.25 1.5 mm /
Fine-stranded conductor with ferrule without plastic collar  0.25 1.5 mm /
Strip length  6 7 mm / 0.24 0.28 Inch
Material group  I
Insulating material  Polyamide 66 (PA 66)
Flammability class per UL94  V0
Limit temperature range  -60 100
Clamping spring material  Chrome-nickel spring steel (CrNi)
Contact material  Electrolytic copper (Ecu)
Contact plating  tin-plated
Fire load [MJ]  0.093  MJ
Weight [g]  4.232  g
Width  28.8 mm / 1.134 Inch
Height  13.4 mm / 0.528 Inch
Depth  22.3 mm / 0.878 Inch
Pin spacing from [mm]  3.5  mm
Type of mounting  Feed-through mounting
Mounting type  Mounting flange
.

The WAGO component equivalent to 734304019000 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is designed to meet high standards of performance and is commonly utilized in various industrial and commercial settings. It ensures secure and stable connections, making it a preferred choice for professionals in the field.
