(III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:
-60 +100 C
locking of plug in connection:
Without
material group:
I
mismating protection:
Yes
nominal voltage ii 2:
320 V
nominal voltage iii 3:
160 V
note conductor cross section:
Terminating 1.5 mm conductors is possible: however insulation diameter does not allow clamping units to be terminated in a row.
packaging type:
Box
pin spacing:
3.81 mm / 0.15 inch
pole no:
14
rated current:
0.416666666666667
rated current csa use group b:
0.416666666666667
rated current csa use group d:
0.416666666666667
rated current ul use group b:
0.416666666666667
rated current ul use group d:
0.416666666666667
rated surge voltage ii 2:
2.5 kV
rated surge voltage iii 2:
2.5 kV
rated surge voltage iii 3:
2.5 kV
rated voltage csa use group b:
300 V
rated voltage csa use group d:
300 V
rated voltage iii 2:
160 V
rated voltage ul use group b:
300 V
rated voltage ul use group d:
300 V
ratings per:
IEC/EN 60664-1
safety information 1:
The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
2-conductor end terminal block; without push-buttons; suitable for Ex i applications; without snap-in mounting foot; 1-pole; 2.5 mm²; CAGE CLAMP; 2,50 mm²; blue
4-conductor terminal block; without push-buttons; suitable for Ex i applications; with snap-in mounting foot; 1-pole; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ã; 2.5 mm²; CAGE CLAMP;...

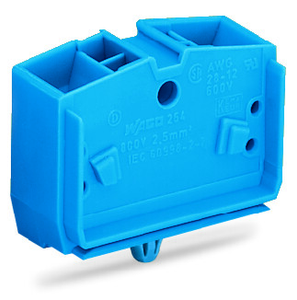

4-conductor terminal block; with snap-in mounting foot; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm also fits 210-154 aluminum rail or with 209-123 mounting carrier for DIN 35 rail
