Wago

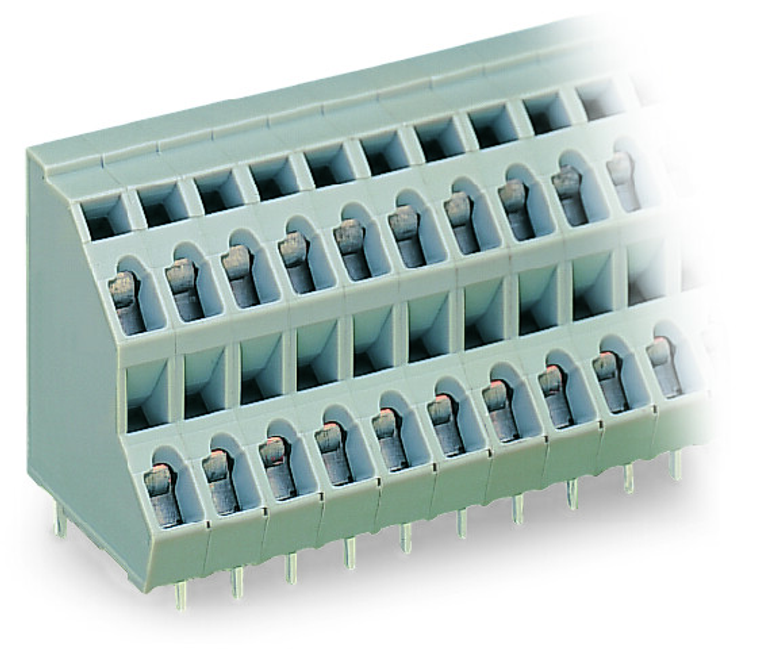

WAGO 736-202 Double-deck PCB terminal block; 2.5 mm²; Pin spacing 5 mm; 2 x 2-pole; CAGE CLAMP®; 2,50 mm²; gray

(No reviews yet) Write a Review
SKU:
736-202
MPN:
51151866
Condition:
New
actuation type:
Operating tool
approvals per:
UL 1059
clamping spring material:
Chrome nickel spring steel (CrNi)
color:
Gray
conductor connection direction to pcb:
45
connection technology:
CAGE CLAMP
contact material:
Electrolytic copper (ECu)
contact plating:
Tin-plated
country of origin sales organisation germany:
PL
depth:
21 mm / 0.827 inch
drilled hole diameter with tolerance:
1.3 (+0.1) mm
fine stranded conductor:
0.08 2.5 mm / 28 12 AWG
fine stranded conductor with insulated ferrule:
0.25 1.5 mm
fine stranded conductor with uninsulated ferrule:
0.25 2.5 mm
fire load:
0.079 MJ
flammability class per ul94:
V0
height:
30.5 mm / 1.201 inch
height from the surface:
26.5 mm / 1.043 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:
-60 +105 C
material group:
I
nominal voltage ii 2:
630 V
nominal voltage iii 3:
250 V
note conductor cross section:
12 AWG: THHN, THWN
number of solder pins per potential:
1
packaging type:
Box
pcb contact:
THT
pin spacing:
5 mm / 0.197 inch
pole no:
4
rated current:
21 A
rated current 2:
21 A
rated current csa use group b:
0.416666666666667
rated current csa use group d:
0.416666666666667
rated current ul use group b:
0.416666666666667
rated current ul use group d:
0.416666666666667
rated surge voltage ii 2:
4 kV
rated surge voltage ii 2 2:
4 kV
rated surge voltage iii 2:
4 kV
rated surge voltage iii 2 2:
4 kV
rated surge voltage iii 3:
4 kV
rated surge voltage iii 3 2:
4 kV
rated voltage csa use group b:
300 V
rated voltage csa use group d:
300 V
rated voltage ii 2 2:
630 V
rated voltage iii 2:
320 V
rated voltage iii 2 2:
320 V
rated voltage iii 3 2:
320 V
rated voltage ul use group b:
300 V
rated voltage ul use group d:
300 V
ratings note:
Between the modules
ratings note 2:
Between the decks
ratings per:
IEC/EN 60664-1 || IEC/EN 60664-1
solder pin arrangement:
Within the terminal block (staggered)
solder pin dimensions:
0.7 x 0.7 mm
solder pin length:
4 mm
solid conductor:
0.08 2.5 mm / 28 12 AWG
strip length:
5 6 mm / 0.2 0.24 inch
weight:
4.967 g
width:
11 mm / 0.433 inch
  • Wago 736-202
  • Wago 736-202
  • Wago 736-202
$2.25

Description

Double-deck PCB terminal block; 2.5 mm²; Pin spacing 5 mm; 4-pole; CAGE CLAMP; 2,50 mm²; gray.

The WAGO component equivalent to 736202 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is commonly used in industrial, commercial, and residential electrical installations, offering ease of use and durability.
