WAGO 738-312
Wago
$26.15

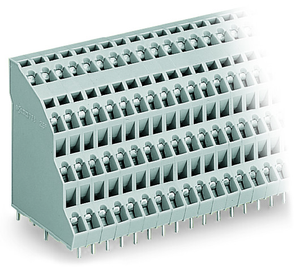

Quadruple-deck PCB terminal block; 2.5 mm; Pin spacing 5.08 mm; 4 x 12-pole; CAGE CLAMPp>
- PCB terminal strips with screwdriver-actuated CAGE CLAMP<sup></sup>
- High-density, double-deck design for space-efficient wiring of multiple conductors in confined areas
- Angled conductor entry and CAGE CLAMP actuation streamline operation
- Custom marking for all termination levels
The WAGO component equivalent to 738312 is a specific part or model within the WAGO product line, which is known for its high-quality electrical interconnection and automation solutions. This component is likely used in various applications requiring reliable and efficient electrical connections, such as in industrial automation, building technology, and other electrical engineering fields. The exact specifications and features of the 738312 equivalent would align with WAGO's standards for performance, durability, and ease of use, ensuring compatibility and functionality within the intended systems.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- conductor connection direction to pcb:
- 45
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 37.5 mm / 1.476 inch
- drilled hole diameter with tolerance:
- 1.3 (+0.1) mm
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm
- fire load:
- 0.993 MJ
- flammability class per ul94:
- V0
- height:
- 48.2 mm / 1.898 inch
- height from the surface:
- 44.2 mm / 1.74 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 5.08 mm / 0.2 inch
- pole no:
- 48
- rated current:
- 18 A
- rated current 2:
- 18 A
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage ii 2 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 2 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated surge voltage iii 3 2:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage ii 2 2:
- 630 V
- rated voltage iii 2:
- 320 V
- rated voltage iii 2 2:
- 320 V
- rated voltage iii 3 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings note:
- Between the modules
- ratings note 2:
- Between the decks
- ratings per:
- IEC/EN 60664-1 || IEC/EN 60664-1
- solder pin arrangement:
- Within the terminal block (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 72.616 g
- width:
- 61.96 mm / 2.439 inch
