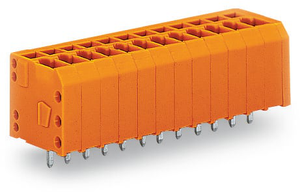

WAGO 739-340 PCB terminal block; 1.5 mm²; Pin spacing 3.81 mm; 10-pole; CAGE CLAMP; 1,50 mm²; orange
PCB terminal block; 1.5 mm; Pin spacing 3.81 mm; 10-pole; CAGE CLAMP clamping collar.
The WAGO component equivalent to 739340 is a specific type of electrical connector or terminal block used in various industrial and commercial applications. These components are known for their reliability, ease of use, and secure connections, making them suitable for a wide range of electrical wiring tasks. They are designed to ensure safe and efficient electrical connections, often featuring push-in or lever-actuated mechanisms for quick and tool-free installation. The equivalent component to 739340 would share these characteristics, providing a dependable solution for electrical connectivity needs.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- conductor connection direction to pcb:
- 90
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 13.4 mm / 0.528 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 1.5 mm / 28 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.134 MJ
- flammability class per ul94:
- V0
- height:
- 15.7 mm / 0.618 inch
- height from the surface:
- 12.3 mm / 0.484 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 500 V
- nominal voltage iii 3:
- 200 V
- note conductor cross section:
- 14 AWG: THHN, THWN
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 3.81 mm / 0.15 inch
- pole no:
- 10
- rated current:
- 17.5 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.6 x 0.8 mm
- solder pin length:
- 3.4 mm
- solid conductor:
- 0.08 1.5 mm / 28 14 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 7.002 g
- width:
- 39.6 mm / 1.559 inch
