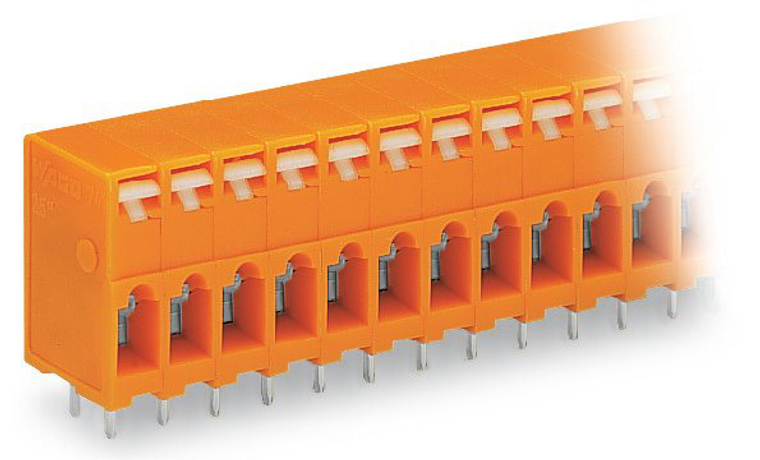

PCB terminal blockpush-button 2.5 mm Pin spacing 5.08 mm 9-pole, orange
- Feedthrough terminal blocks with push-button actuated CAGE CLAMP<sup></sup>
- Simple, push-button wiring
- Test slot integrated into upper-portion of conductor entry for test pins
The WAGO component equivalent to 741209 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. It serves as a direct replacement or alternative to the 741209 model, ensuring compatibility and performance in various systems. This component is typically utilized in automation, control systems, and other technical setups where precise and dependable connections are crucial.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- conductor connection direction to pcb:
- 0
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 12.8 mm / 0.504 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.207 MJ
- flammability class per ul94:
- V0
- height:
- 22.5 mm / 0.886 inch
- height from the surface:
- 18.5 mm / 0.728 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 5.08 mm / 0.2 inch
- pole no:
- 9
- rated current:
- 16 A
- rated current csa use group b:
- 16 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 11.884 g
- width:
- 47.22 mm / 1.859 inch
