Wago

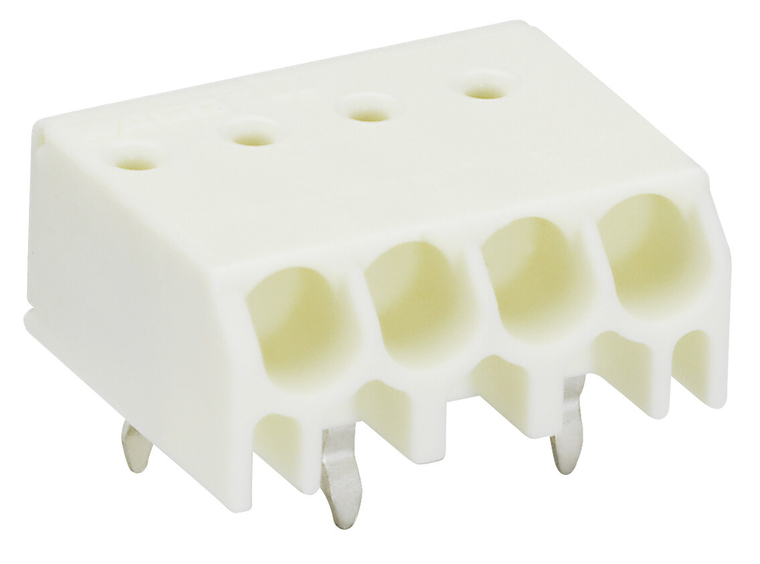

WAGO 744-306

SKU:

744-306

UPC:

MPN:

744-306

Condition:

New

actuation type:

Operating tool

approvals per:

UL 1059

clamping spring material:

Copper alloy

color:

White

conductor connection direction to pcb:

0

connection technology:

PUSH WIRE

contact material:

Copper alloy

contact plating:

Tin-plated

country of origin sales organisation germany:

CH

depth:

12.5 mm / 0.492 inch

drilled hole diameter with tolerance:

1.1 (-0.1) mm

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

10.1 mm / 0.398 inch

height from the surface:

6.6 mm / 0.26 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

nominal voltage ii 2:

630 V

nominal voltage iii 3:

250 V

number of solder pins per potential:

1

packaging type:

Box

pcb contact:

THT

pin spacing:

3.5 mm / 0.138 inch

pole no:

6

rated current:

0.125

rated current ul use group b:

0.25

rated current ul use group d:

0.25

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage iii 2:

320 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (staggered)

solder pin dimensions:

0.35 x 0.9 mm

solder pin length:

3.5 mm

solid conductor:

0.5 1.5 mm / 20 16 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

1.658 g

width:

21.9 mm / 0.862 inch
