Wago

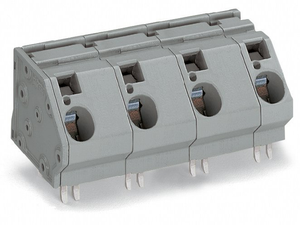

WAGO 745-655/006-000

SKU:

745-655/006-000

UPC:

MPN:

745-655/006-000

Condition:

New

actuation type:

Operating tool

approvals per:

CSA

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Gray

conductor connection direction to pcb:

45

connection technology:

CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

PL

depth:

33.4 mm / 1.315 inch

drilled hole diameter with tolerance:

2.2 (+0.1) mm

fine stranded conductor:

0.2 16 mm / 24 6 AWG

fine stranded conductor with insulated ferrule:

0.25 10 mm

fine stranded conductor with uninsulated ferrule:

0.25 10 mm

fire load:

1.103 MJ

flammability class per ul94:

V0

height:

33.5 mm / 1.319 inch

height from the surface:

27 mm / 1.063 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

1000 V

number of solder pins per potential:

4

packaging type:

Box

pcb contact:

THT

pin spacing:

20 mm / 0.787 inch

pole no:

5

rated current:

76 A

rated current csa use group b:

65 A

rated current csa use group c:

65 A

rated current ul use group b:

65 A

rated current ul use group c:

65 A

rated surge voltage ii 2:

12 kV

rated surge voltage iii 2:

12 kV

rated surge voltage iii 3:

12 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage iii 2:

1000 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (in-line)

solder pin dimensions:

1.2 x 1.6 mm

solder pin length:

6.5 mm

solid conductor:

0.2 16 mm / 24 6 AWG

strip length:

12 13 mm / 0.47 0.51 inch

weight:

60.507 g

width:

91.7 mm / 3.61 inch
