8-channel digital input; 24 VDC; 3 ms; Low-side switching; 2-conductor connection; Extreme.

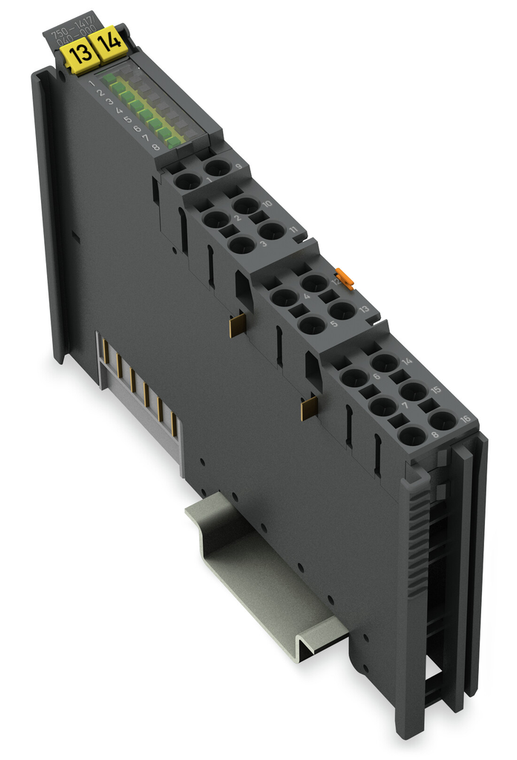

The WAGO 750 XTR series standard DC digital input slice module is designed for extended temperature ranges, featuring 8 digital inputs (24Vdc transistor, low-side switching, 2-wire, 3ms filter). It operates with a supply voltage of 5Vdc provided by the system and utilizes Push-in spring CAGE CLAMP connections. The module is mounted on a DIN-35 rail with a 12mm width and has an IP20 protection rating, suitable for ambient temperatures ranging from -40°C to +70°C. It is equivalent to the model number 7501417040000.
- ambient temperature operation:
- -40 ¦ +70 °C
- color:
- Dark gray
- conformity marking:
- CE
- connection technology inputs outputs:
- 16 x Push-in CAGE CLAMP®
- connection type 1:
- Inputs/outputs
- COUNTRY OF ORIGIN VKORG GERMANY:
- DE
- CURRENT CARRYING CAPACITY POWER JUMPER CONTACTS:
- 0.416666666666667
- CURRENT CONSUMPTION 5 V SYSTEM SUPPLY:
- 12 mA
- CUSTOMS TARIFF NUMBER VKORG GERMANY:
- 85389099990
- DEPTH:
- 69 mm / 2.717 inches
- DEPTH FROM UPPER EDGE OF DIN RAIL:
- 61.8 mm / 2.433 inches
- DERATING:
- Derating (supply voltage): Surrounding air temperatures under laboratory conditions: (-25 ¦ +30 %)
- DIELECTRIC STRENGTH:
- 510 VAC/775 VDC
- EMC EMISSION OF INTERFERENCE:
- Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
- EMC IMMUNITY TO INTERFERENCE:
- Per EN 61000-6-1, -2
- EXPOSURE TO POLLUTANTS:
- Per IEC 60068-2-42 and IEC 60068-2-43
- FINE STRANDED CONDUCTOR:
- 0.25 ¦ 1.5 mm² / 24 ¦ 16 AWG
- FIRE LOAD:
- 0.158 MJ
- HEIGHT:
- 100 mm / 3.937 inches
- HOUSING MATERIAL:
- Polycarbonate
- INDICATORS:
- LED (1-8) green: Status DI 1 ¦ DI 8
- INPUT CHARACTERISTIC:
- Low-side switching
- INPUT CURRENT PER CHANNEL FOR SIGNAL 0 TYP:
- 2.4 mA
- INPUT DATA WIDTH INTERNAL MAX:
- 8 bits
- INPUT FILTER DIGITAL:
- 3 ms
- MEASUREMENT ERROR DEVIATION MAX FROM THE UPPER RANGE VALUE:
- MEASUREMENT ERROR DEVIATION MAX OF THE UPPER RANGE VALUE 2=
- MISMATING PROTECTION:
- MOUNTING NOTE=
- MOUNTING POSITION:
- Horizontal (standing/lying)
- MOUNTING TYPE:
- DIN-35 rail
- NUMBER OF INCOMING POWER JUMPER CONTACTS:
- 2
- NUMBER OF OUTGOING POWER JUMPER CONTACTS:
- 2
- OPERATING ALTITUDE:
- Without temperature derating: 0 ¦ 2000 m
- PERMISSIBLE H2S CONTAMINANT CONCENTRATION AT A RELATIVE HUMIDITY 75:
- 10 ppm
- PERMISSIBLE SO2 CONTAMINANT CONCENTRATION AT A RELATIVE HUMIDITY 75:
- 25 ppm
- POLLUTION DEGREE 5:
- 2 per IEC 61131-2
- PRODUCT GROUP CODE:
- 15
- PROTECTION TYPE:
- IP20
- RATED SURGE VOLTAGE:
- 1 kV
- RELATIVE HUMIDITY WITH CONDENSATION:
- Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
- RELATIVE HUMIDITY WITHOUT CONDENSATION:
- 0.95
- SENSOR CONNECTION:
- 8 x (2-wire)
- SHOCK RESISTANCE:
- Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks
- SIGNAL TYPE:
- Voltage
- SIGNAL TYPE VOLTAGE:
- 24 VDC
- SOLID CONDUCTOR:
- 0.25 ¦ 1.5 mm² / 24 ¦ 16 AWG
- STRIP LENGTH:
- 8 ¦ 9 mm / 0.31 ¦ 0.35 inches
- SUPPLY VOLTAGE FIELD:
- 24 VDC (-25 ¦ +30 %)
- SUPPLY VOLTAGE SENSOR:
- 24 VDC
- SUPPLY VOLTAGE SYSTEM:
- 5 VDC
- SURROUNDING AIR TEMPERATURE STORAGE:
- -40 ¦ +85 °C
- TOTAL NUMBER OF CHANNELS MODULE:
- 8
- VIBRATION RESISTANCE:
- Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155
- VOLTAGE RANGE FOR SIGNAL 0:
- (UV - 5 V) ¦ UV DC
- VOLTAGE RANGE FOR SIGNAL 1:
- 3 VDC ¦ (UV - 15 V)
- WEIGHT:
- 59.787 g
- WIDTH:
- 12 mm / 0.472 inches
