8-channel digital input; 24 VDC; 3 ms; Low-side switching; 2-conductor connection
Technical Data
- Number of digital inputs: 8
- Total number of channels (module): 8
- Type of signal: Voltage
- Type of signal voltage: DC 24 V
- Sensor supply voltage: DC 24 V
- Sensor connection: 8 x (2-conductor)
- Input characteristic: low-side switching
- Input filter (digital): 3 ms
- Input current per channel for signal (0) min.: -2.1 mA
- Input current per channel for signal (0) max.: -2.7 mA
- Input current per channel for signal (1) typ.: -0.6 mA
- Voltage range for signal (0): DC (U<sub>V</sub> - 5 V) U<sub>V</sub>
- Voltage range for signal (1): VDC (U<sub>V</sub> - 15 V)
- Max input data width (internal): 8 bit
- System supply voltage: DC 5 V; via data contacts
- Current consumption, system supply (5 V): 12 mA
- Field supply voltage: DC 24 V (-25 +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
- Isolation: 500 V system/supply
- Indicators: LED (1-8) green: Status DI 1 DI 8
- Number of incoming power jumper contacts: 2
- Number of outgoing power jumper contacts: 2
- Current carrying capacity of the power jumper contacts: 10 A
Connection Data
- Connection technology: In-/Outputs: 16 x Push-in CAGE CLAMP<sup></sup>
- Connection type (1): Inputs/Outputs
- Solid conductor: 0.08 1.5 mm / 28 16 AWG
- Fine-stranded conductor: 0.25 1.5 mm / 22 16 AWG
- Strip length: 8 9 mm / 0.31 0.35 inch
- Conductor type (1): fine-stranded
- Conductor type (2): solid
Geometrical Data
- Width: 12 mm / 0.472 inch
- Height: 69 mm / 2.717 inch
- Height from upper-edge of DIN-35 rail: 61.8 mm / 2.433 inch
- Depth: 100 mm / 3.937 inch
Mechanical Data
- Type of mounting: DIN-35 rail
Material Data
- Housing material: Polycarbonate, polyamide 6.6
- Fire load: 0.000 MJ
- Weight: 46.500 g
- Conformity marking: CE
Environmental Requirements
- Surrounding air (operating) temperature: 0 55 C
- Surrounding air (storage) temperature: -40 85 C
- Protection class: IP20
- Degree of pollution (5): 2 per IEC 61131-2
- Operating altitude: 0 2000 m
- Mounting position: horizontal (standing/lying) or vertical
- Relative air humidity (no condensation): 95 %
- Vibration resistance: 4g per IEC 60068-2-6
- Shock resistance: 15g per IEC 60068-2-27
- EMC immunity to interference: acc. to EN 61000-6-2, marine applications
- EMC emission of interference: acc. to EN 61000-6-3, marine applications
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 %: 10 ppm
- Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 %: 25 ppm
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4050821085645
- Customs Tariff No.: 85389099990

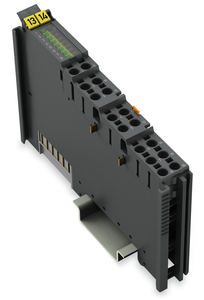

The WAGO 750 series standard DC digital input slice module features 8 digital inputs (24Vdc transistor, low-side switching, 2-wire, 3ms filter) and operates with a supply voltage of 5Vdc provided by the system. It includes Push-in spring CAGE CLAMP connections and is designed for DIN-35 rail mounting with a 12mm width. The module is rated for an ambient temperature range of 0°C to +55°C and has an IP20 protection rating. It is equivalent to the model 7501417.
- conductor type 1:
- F-st
- conductor type 2:
- S || Solid
- conformity marking:
- CE
- connection technology inputs outputs:
- 16 x Push-in CAGE CLAMP
- connection type 1:
- Inputs/outputs
- country of origin sales organisation germany:
- DE
- current carrying capacity power jumper contacts:
- 0.416666666666667
- depth:
- 69 mm / 2.717 inch
- depth from upper edge of din rail:
- 61.8 mm / 2.433 inch
- emc emission of interference:
- Per EN 61000-6-3, marine applications
- emc immunity to interference:
- Per EN 61000-6-2, marine applications
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- fine stranded conductor:
- 0.25 1.5 mm / 22 16 AWG
- fire load:
- 0.824 MJ
- height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- indicators:
- LED (1-8) green: Status DI 1 DI 8
- input characteristic:
- Low-side switching
- input current per channel for signal 0 max:
- -2.7 mA
- input current per channel for signal 0 max:
- -2.1 mA
- input current per channel for signal 1 typ:
- -0.6 mA
- input data width internal max:
- 8 bits
- input filter digital:
- 3 ms
- isolation:
- 500 V system/field
- mounting position:
- Horizontal (standing/lying): vertical
- mounting type:
- DIN-35 rail
- number of digital inputs:
- 8
- number of incoming power jumper contacts:
- 2
- number of outgoing power jumper contacts:
- 2
- operating altitude:
- 0 2000 m
- packaging type:
- Box
- permissible h2s contaminant concentration at a relative humidity 75:
- 10 ppm
- permissible so2 contaminant concentration at a relative humidity 75:
- 25 ppm
- pollution degree 5:
- 2 per IEC 61131-2
- power consumption 5 v system supply:
- 12 mA
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- sensor connection:
- 8 x (2-wire)
- shock resistance:
- 15g per IEC 60068-2-27
- signal type:
- Voltage
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- supply voltage field:
- 24 VDC (-25 +30 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)
- supply voltage sensor:
- 24 VDC
- supply voltage system:
- 5 VDC: via data contacts
- surrounding air temperature operation:
- 0 55 C
- surrounding air temperature storage:
- -40 85 C
- total number of channels module:
- 8
- vibration resistance:
- 4g per IEC 60068-2-6
- voltage range for signal 0:
- (UV - 5 V) UV DC
- voltage range for signal 1:
- 3 VDC (UV - 15 V)
- voltage signal type:
- 24 VDC
- weight:
- 46.500 g
- width:
- 12 mm / 0.472 inch
- wiring interface:
- Fixed
