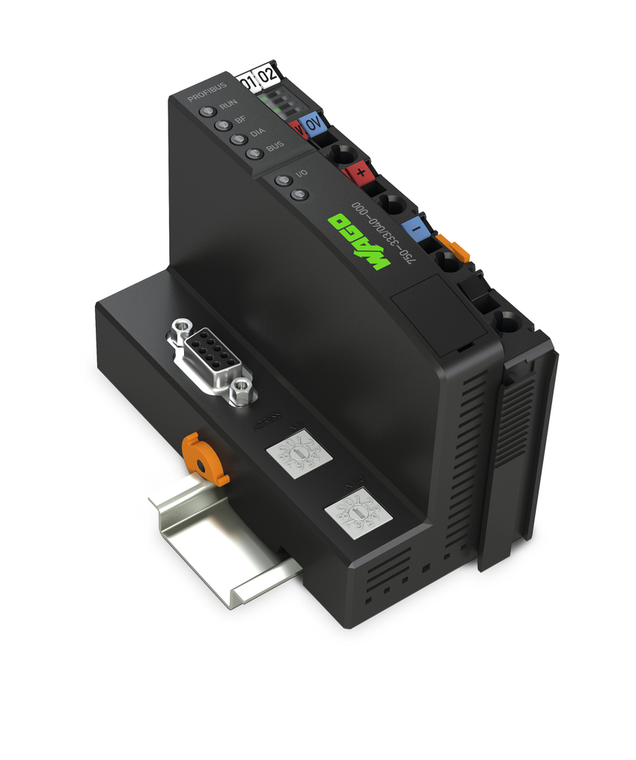

Fieldbus Coupler PROFIBUS DP; 2nd Generation; 12 MBd; Extreme.
The WAGO 750 XTR series Fieldbus coupler/head is a remote I/O controller unit designed for extended temperature ranges, supporting up to 63 connections per node and 96 fieldbus nodes on the master connection. It features PROFIBUS communication capability, operates on a 24Vdc supply via system wiring and power jumper, and includes a 9-pin D-sub female connector for fieldbus, a spring CAGE CLAMP for power supply connections, and a 4-pin male connector for device configuration. The unit is mounted on a DIN-35 rail with a width of 50.5mm, has an IP20 protection rating, and is rated for ambient temperatures between -40°C and +70°C, equivalent to model 750333040000.
- baud rate:
- 9.6 kBd 12 MBd
- bus segment length max:
- 1200 m
- color:
- Dark gray
- communication:
- PROFIBUS
- conformity marking:
- CE
- connection technology communication fieldbus:
- PROFIBUS: 1 x D-sub 9 socket
- connection technology device configuration:
- 1 x Male connector: 4-pole
- connection technology field supply:
- 4 x CAGE CLAMP
- connection technology system supply:
- 2 x CAGE CLAMP
- connection type 1:
- System/field supply
- country of origin sales organisation germany:
- DE
- current carrying capacity power jumper contacts:
- 0.416666666666667
- depth:
- 71.1 mm / 2.799 inch
- depth from upper edge of din rail:
- 63.9 mm / 2.516 inch
- derating:
- Derating (supply voltage): Surrounding air temperatures under laboratory conditions: (-25 +30 %): for -40 +55 C: 24 V (-25 +20 %): for +55 +70 C: 24 V (-25 +10 %): Lower limit in all temperature ranges: 27.5 % (
- emc emission of interference:
- Per EN 61000-6-4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
- emc immunity to interference:
- Per EN 61000-6-1, -2: EN 61131-2: marine applications: EN 50121-3-2: EN 50121-4, -5: EN 60255-26: EN 60870-2-1: EN 61850-3: IEC 61000-6-5: IEEE 1613: VDEW: 1994
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- fine stranded conductor:
- 0.25 2.5 mm / 24 14 AWG
- fire load:
- 0.469 MJ
- height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- input and output fieldbus process image max:
- 244 Byte/244 Byte
- input current typ at nominal load 24 v:
- 500 mA
- mounting position:
- Horizontal (standing/lying): vertical
- mounting type:
- DIN-35 rail
- note:
- Note: Configuration files required (GSD)!
- number of fieldbus nodes on master max:
- 96
- number of i o points:
- 6000
- number of modules per node max:
- 63
- number of outgoing power jumper contacts:
- 2
- operating altitude:
- Without temperature derating: 0 2000 m: with temperature derating: 2000 5000 m (0.5 K/100 m): 5000 m (max.)
- packaging type:
- Box
- permissible h2s contaminant concentration at a relative humidity 75:
- 10 ppm
- permissible so2 contaminant concentration at a relative humidity 75:
- 25 ppm
- pollution degree 5:
- 2 per IEC 61131-2
- power consumption 5 v system supply:
- 200 mA
- power supply efficiency typ at nominal load 24 v:
- 0.9
- protection type:
- IP20
- rated surge voltage:
- 1 kV
- ratings per:
- IEC/EN 60664-1
- relative humidity with condensation:
- Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
- relative humidity without condensation:
- 0.95
- shock resistance:
- Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks: 25g/6 ms/1,000 shocks), EN 50155, EN 61373
- solid conductor:
- 0.25 2.5 mm / 24 14 AWG
- standard:
- EN 50170
- strip length:
- 8 9 mm / 0.31 0.35 inch
- supply voltage field:
- 24 VDC: Power supply via pluggable connector (CAGE CLAMP connection): Transmission via power jumper contacts: Derating must be observed!
- supply voltage system:
- 24 VDC: via pluggable connector (CAGE CLAMP connection): Derating must be observed!
- surrounding air temperature operation:
- -40 70 C
- surrounding air temperature storage:
- -40 85 C
- total current system supply:
- 1800 mA
- transmission medium:
- Cu cable per EN 50170
- transmission time:
- Typ. 1 ms (10 couplers: each 32 digital I/O and 12 Mbaud) max. 3.3 ms
- vibration resistance:
- Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155: EN 61373
- weight:
- 180.000 g
- width:
- 50.5 mm / 1.988 inch
