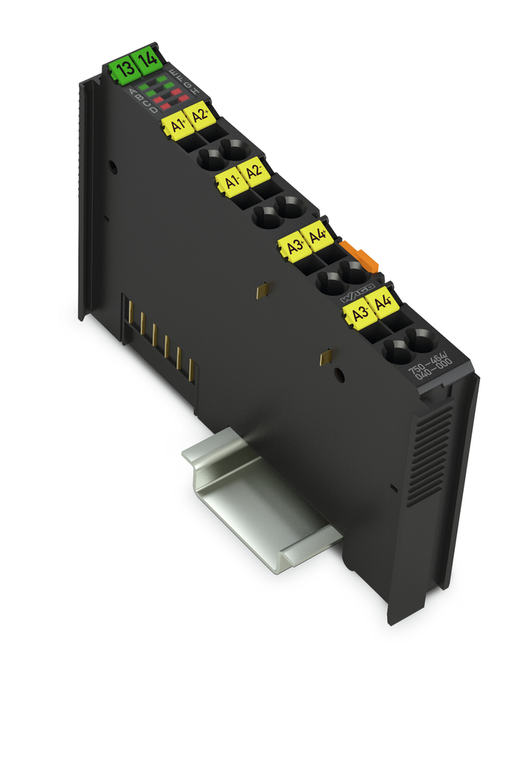

WAGO 750-464/040-000
Wago
$910.60
2/4-channel analog input; Resistance measurement; Adjustable; Extreme.
The WAGO 750 XTR series standard analog input slice module is designed for extended temperature ranges and features 4 configurable analog inputs for RTD sensors (Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000) and potentiometers (0...1200? / 0...5000?) with 0.1°C resolution and 320ms conversion time. It operates on a 5V DC supply provided by the system and includes spring CAGE CLAMP connections for secure wiring. The module is mounted on a DIN-35 rail, has a width of 12mm, and is rated for ambient temperatures between -40°C and +70°C, with an IP20 protection rating. It is equivalent to the model number 750-464/040-000.
- accuracy 25 c:
- ¤ 0.2 % of full scale value: typ.: ¤ 0.1 % of full scale value
- color:
- Dark gray
- conformity marking:
- CE
- connection technology inputs outputs:
- 8 x CAGE CLAMP
- connection type 1:
- Inputs/outputs
- conversion time typ:
- 320 ms
- country of origin sales organisation germany:
- DE
- current carrying capacity power jumper contacts:
- 0.416666666666667
- data width:
- 4 (2) x 16-bit data: 4 (2) x 8-bit control/status (optional)
- depth:
- 67.8 mm / 2.669 inch
- depth from upper edge of din rail:
- 60.6 mm / 2.386 inch
- derating:
- Derating (supply voltage): Surrounding air temperatures under laboratory conditions: (-25 +30 %): for -40 +55 C: 24 V (-25 +20 %): for +55 +70 C: 24 V (-25 +10 %): Lower limit in all temperature ranges: 27.5 % (
- dielectric strength:
- 510 VAC/775 VDC: per EN 60870-2-1
- emc emission of interference:
- Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
- emc immunity to interference:
- Per EN 61000-6-1, -2: EN 61131-2: marine applications: EN 50121-3-2: EN 50121-4, -5: EN 60255-26: EN 60870-2-1: EN 61850-3: IEC 61000-6-5: IEEE 1613: VDEW: 1994
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- fine stranded conductor:
- 0.25 2.5 mm / 24 14 AWG
- fire load:
- 0.147 MJ
- height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- measured current typ:
- ¤ 350 A per measurement circuit
- measurement error 25 c:
- ¤ 1 K over entire temperature range, ¤ 0.5 K over limited temperature range (30 C +120 C)
- measurement repetition rate 2 channel 2 conductor:
- 0.63 s
- measurement repetition rate standard:
- 1.1 s
- mounting position:
- Horizontal (standing/lying): vertical
- mounting type:
- DIN-35 rail
- number of analog inputs:
- 4
- number of incoming power jumper contacts:
- 2
- number of outgoing power jumper contacts:
- 2
- operating altitude:
- Without temperature derating: 0 2000 m: with temperature derating: 2000 5000 m (0.5 K/100 m): 5000 m (max.)
- packaging type:
- Box
- permissible h2s contaminant concentration at a relative humidity 75:
- 10 ppm
- permissible so2 contaminant concentration at a relative humidity 75:
- 25 ppm
- pollution degree 5:
- 2 per IEC 61131-2
- power consumption 5 v system supply:
- 50 mA
- protection type:
- IP20
- rated surge voltage:
- 1 kV
- relative humidity with condensation:
- Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
- relative humidity without condensation:
- 0.95
- resolution over entire range:
- 0.1 C
- response time max:
- 4 s
- sensor connection:
- 4 x (2-wire): 2 x (3-wire)
- sensor types:
- Pt100: Configurable: Pt200, Pt500, Pt1000 (IEC 751), Ni100, Ni1000 (DIN 43760), Ni120 (Minco), Ni1000 (TK 5000), Potentiometer (2-channel operation only): 10R 1k2, 10R 5k0
- shock resistance:
- Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks: 25g/6 ms/1,000 shocks), EN 50155, EN 61373
- signal type:
- Resistance measurement || Potentiometer positions
- signal type configurable:
- Yes
- solid conductor:
- 0.25 2.5 mm / 24 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- supply voltage field:
- 24 VDC (-25 +30 %): via power jumper contacts (power supply via blade contact: transmission via spring contact): Derating must be observed!
- supply voltage system:
- 5 VDC: via data contacts
- surrounding air temperature operation:
- -40 70 C
- surrounding air temperature storage:
- -40 85 C
- temperature coefficient:
- ¤ 20 ppm/K: typ. ¤ 15 ppm/K
- temperature range:
- 200 +850 C (Pt), 60 +300 C (Ni 100, Ni 1000), 60 +250 C (Ni 1000 TK5000), 80 +260 C (Ni 120)
- total number of channels module:
- 4
- vibration resistance:
- Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155: EN 61373
- weight:
- 49.205 g
- width:
- 12 mm / 0.472 inch
