Wago

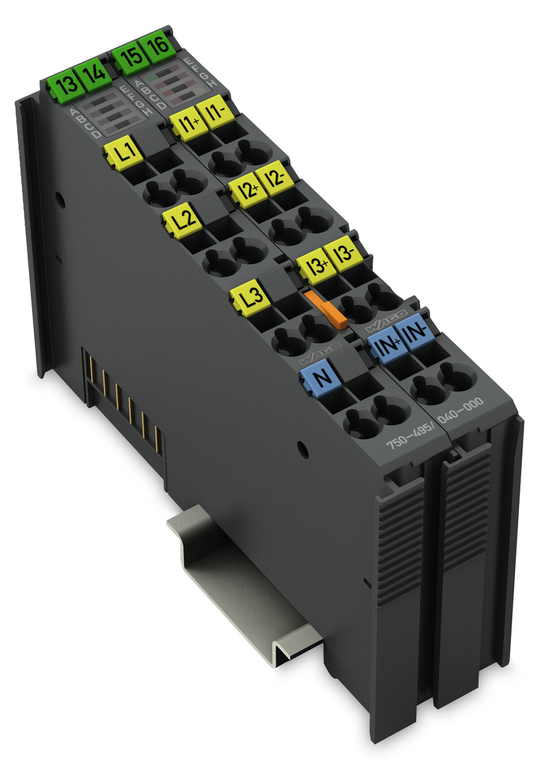

WAGO 750-495/040-000

SKU:

750-495/040-000

UPC:

MPN:

750-495/040-000

Condition:

New

calculated values:

Line-to-line voltage, power output, energy, power factors, mains frequency, harmonic analysis (up to the 41st harmonic), THD

color:

Dark gray

conformity marking:

CE

connection technology inputs outputs:

16 x CAGE CLAMP

connection type 1:

Inputs/outputs

country of origin sales organisation germany:

DE

current path input resistance typ:

22 m

data width:

2 x 128-bit data: 2 x 64-bit control/status

depth:

67.8 mm / 2.669 inch

depth from upper edge of din rail:

60.6 mm / 2.386 inch

dielectric strength:

2.5 kV (AC)/3.5 kV (DC): per EN 60870-2-1

emc emission of interference:

Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5

emc immunity to interference:

Per EN 61000-6-1, -2: EN 61131-2: marine applications: EN 50121-3-2: EN 50121-4, -5: EN 60255-26: EN 60870-2-1: EN 61850-3: IEC 61000-6-5: IEEE 1613: VDEW: 1994

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.25 2.5 mm / 24 14 AWG

fire load:

0.273 MJ

frequency range harmonics analysis:

0 3300 Hz

frequency range mains frequency:

45 65 Hz

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

limit frequency:

15.9 kHz

measurement components:

Evaluating

measurement current max:

0.0416666666666667

measurement cycle time:

Adjustable for arithmetic mean value, min./max. values

measurement error deviation max from the upper range value:

0.005

measurement error reference temperature:

25 C

measurement method:

True RMS measurement

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

number of measurement inputs:

7 (3 voltage measurement inputs, 4 differential current measurement inputs)

operating altitude:

Without temperature derating: 0 2000 m: with temperature derating: 2000 5000 m (0.5 K/100 m): 5000 m (max.)

overvoltage category:

Nominal voltage 400 V/690 V in a 3-phase system: III (EN 60664-1 / to 4,000 m ASL): II (EN 60664-1 / > 4,000 m up to 5,000 m ASL)

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per EN 60664-1

power consumption 5 v system supply:

100 mA

protection type:

IP20

rated surge voltage:

5.0 kV (EN 60870-2-1 / Class VW3): 6.0 kV (UL 508): 6.0 kV (EN 60664-1 / to 4,000 m ASL): 4.0 kV (EN 60664-1 / > 4,000 m to 5,000 m ASL)

rated voltage:

ULN = 400 VAC: ULL = 690 VAC

reference for measurement error:

AC current/voltage

relative humidity with condensation:

Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)

relative humidity without condensation:

0.95

resolution bit:

24 bits

shock resistance:

Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks: 25g/6 ms/1,000 shocks), EN 50155, EN 61373

signal form:

Any periodic signals (considering the threshold frequencies)

signal type:

Power measurement

solid conductor:

0.25 2.5 mm / 24 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

-40 70 C

surrounding air temperature storage:

-40 85 C

vibration resistance:

Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155: EN 61373

voltage path input resistance typ:

1429 k

weight:

92.500 g

width:

24 mm / 0.945 inch
