Wago

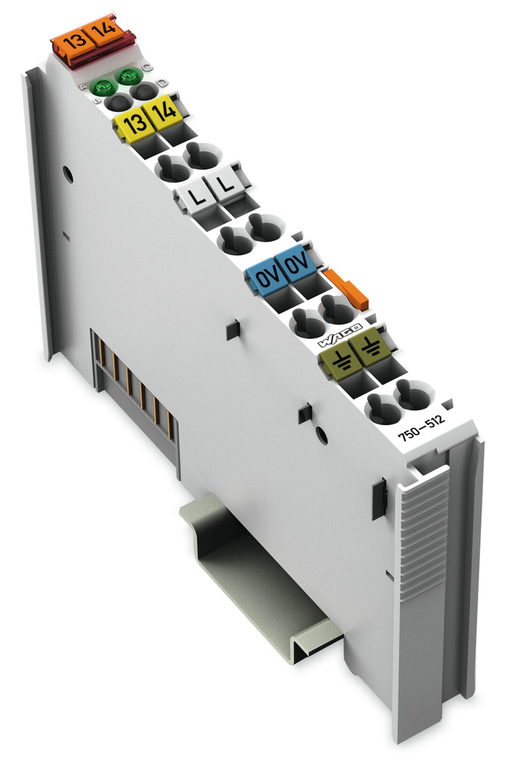

WAGO 750-512

SKU:

750-512

UPC:

MPN:

750-512

Condition:

New

Availability:

In our warehouse: 6

actuator connection:

2 x (2-wire, 3-wire)

bounce time typ:

1.2 ms

color:

Light gray

conformity marking:

CE

connection technology inputs outputs:

8 x CAGE CLAMP

connection type 1:

Inputs/outputs

contact material:

Ag alloy

country of origin sales organisation germany:

DE

current carrying capacity power jumper contacts:

0.416666666666667

depth:

69.8 mm / 2.748 inch

depth from upper edge of din rail:

62.6 mm / 2.465 inch

drop out time max:

10 ms

electrical switching operations min at max resistive load:

3 x 105

emc emission of interference:

Per EN 61000-6-4, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

1.283 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

indicators:

LED (A, C) green: Status relay 1, relay 2

isolation:

1500 V (system/field)

load type of switching frequency:

Nominal load

mechanical switching operations min at max resistive load:

20 x 106

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

number of digital outputs:

2

number of incoming power jumper contacts:

3

number of outgoing power jumper contacts:

3

operating altitude:

0 2000 m

output characteristic:

Non-floating

output circuit design:

2 make contacts || Relays

output internal data width max:

2 bits

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

100 mA

protection type:

IP20

pull in time max:

10 ms

relative humidity without condensation:

0.95

shock resistance:

15g per IEC 60068-2-27

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

250 VAC: via power jumper contacts (power supply via blade contact: transmission via spring contact)

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

switching current max:

0.0833333333333333

switching current min:

10 mA

switching frequency max:

0.5 Hz: Nominal load

switching power:

500 VA / 60 W (purely resistive load): cos max. = 0.4: L/R max. = 7 ms

switching voltage max:

250 VAC, 30 VDC

switching voltage min:

5 V

total number of channels module:

2

vibration resistance:

4g per IEC 60068-2-6

weight:

51.500 g

width:

12 mm / 0.472 inch

wiring interface:

Fixed
